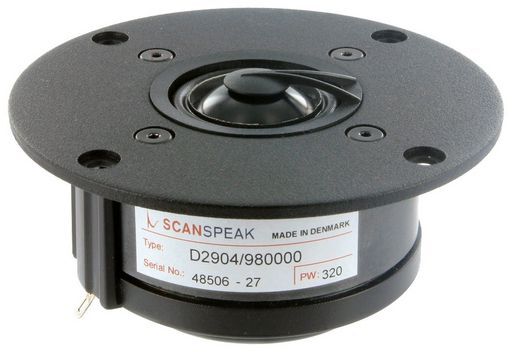

SCAN-SPEAK 1 DOME TWEETER ALUMINIUM
ALUMINIUM DOME WITH DIFFUSER CAP
SKU code: WES_D2904980000_1
This is a SCAN-SPEAK 1 DOME TWEETER ALUMINIUM of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SCAN-SPEAK 1 DOME TWEETER ALUMINIUM |
| Notes | ALUMINIUM DOME WITH DIFFUSER CAP Symmetric Drive technology that almost eliminates electrical phase shift. A carefully designed chamber & minimises air noise and compression. The geometry of the light-weight aluminium dome causes the typical characteristic “break-up” peak to appear far beyond the audible range. A special diffuser is used to equalise the response in the upper octave. SD-2 motor Low compression Non-resonant chamber Revelator design. This premium tweeter is characterised by a very clean and open sound.1 Aluminium Dome DiaphragmPatented Symmetrical Drive (SD) motorWave GuideLow Resonance Rear ChamberBlack Aluminium Face Plate |
| Description | 28mm Alu Dome Tweeter 4 ohm, Ferrite Magnet, Waveguide, Ferro Fluid |
| Type | Tweeter |
| Size | 1' |
| Price Type | each |
| Power | 160Wrms |
| Coil | 28mmØ |
| Width | 104.3mm |
| Lead | 0.01mH |
| Impedance | 4Ω (Re 3.5Ω) |
| Depth | 46mm |
| Mag. | 0.7kg |
| Sens. | 88.0dB |
| Re | 3.5Ω |
| Qms | 3.09 |
| Qes | 0.84 |
| Qts | 0.66 |
| Vas | 0.02L |
| Sd | 8.5cm² |
| Cms | 0.2mm/N |
| Fs | 500Hz |
| Mms | 0.6g |
| Zn | 4Ω |
| Le | 0.01mH |
| Rms | 0.61kg/s |
| Manufacturer | Scan-speak |
| QTY | 1 |
| Page | 1 |
| Inch | 1 |
| Power (RMS) | 151-200 Watt |
| Prms | 160W |
| Impedance (Ohm) | 4 ohm |
| Series | Classic |
| Brand. | Scan-speak |
| SKU No | WES_D2904/980000_1 |
