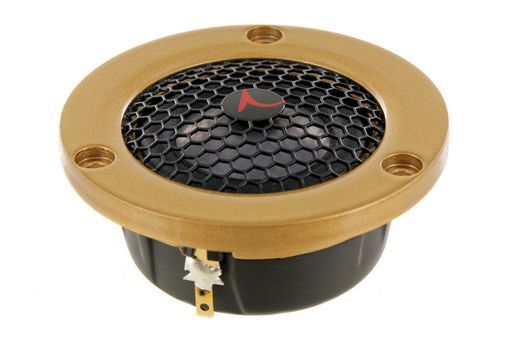

SCAN-SPEAK 1” BERYLLIUM TWEETER AUTOMOTIVE
AUTOMOTIVE SERIES
SKU code: WES_D3004604005_2
This is a SCAN-SPEAK 1” BERYLLIUM TWEETER AUTOMOTIVE of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SCAN-SPEAK 1” BERYLLIUM TWEETER AUTOMOTIVE |
| Notes | AUTOMOTIVE SERIES 26mm Beryllium Dome Tweeter, 4ohm, Neo, Small Chamber, Grill. Scan-Speak GOLD SERIES are specially selected units from Scan-Speak’s well-known home audio speakers. Which have been upgraded and optimized for automotive use. This series enables audiophiles to experience in their vehicle the - TRUE TO LIVE - that they enjoy from their high-end home audio system.Scan-Speak1 Beryllium Diaphragm (99% pure Be)High Power Patented SD-2 magnet systemCompact Die Cast Housing & Face PlateLarge Roll Surround for wide dispersionNon Resonant Aluminium Rear ChamberSound Transparent Protective Grille |
| Description | 26mm Beryllium Dome Tweeter, 4 ohm, Neo, Small Chamber, Grill |
| Impedance | 4Ω (Re 3.6Ω) |
| Power | 50Wrms |
| Fs | 715Hz |
| Sens. | 92.0dB |
| Qes | 1.00 |
| Qms | 2.25 |
| Qts | 0.69 |
| Vas | 0.01L |
| Cms | 0.11mm/N |
| Coil | 26mmØ |
| Depth | 22mm |
| Impedance (Ohm) | 4 ohm |
| Inch | 1 |
| Le | 0.03mH |
| Mag. | 0.15kg |
| Manufacturer | Scan-speak |
| Mms | 0.35g |
| Power (RMS) | 0-50 Watt |
| Re | 3.6Ω |
| Rms | 0.89kg/s |
| Sd | 7cm² |
| Series | Automotive |
| Size | 1' |
| Type | Tweeter |
| Width | 62mm |
| Zn | 4Ω |
| Price Type | each |
| Brand. | ScanSpeak |
| SKU No | WES_D3004/604005_2 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | |
| SKU | WES_D3004604005_2 |
| Brand | Scan-speak |
