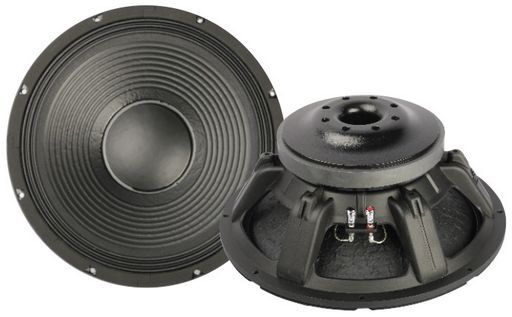

SB AUDIENCE ROSSO 15 MID-WOOFER 500W
SB AUDIENCE ROSSO 15 MID-WOOFER 500W
SKU code: WES_ROSSO-15MW500_1
This is a SB AUDIENCE ROSSO 15 MID-WOOFER 500W of brand SB Audience.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SB AUDIENCE ROSSO 15 MID-WOOFER 500W |
| Notes | Proprietary cone paper material with silk cotton treeMinimum damping fibre glass voice coil former4 voice coil APC with Ribbon voice coil wireCast aluminium chassisVented back plate for reduced compressionTriple roll surround for extended excursion 1. AES standard, test mode with continuous pink noise signal (6 dB crest factor; 2 hours) within the Fo to 10Fo power calculated on rated nominal impedance. Loudspeaker in free air 2. Maximum power is defined as 3dB greater than nominal power. |
| Description | 15' - Woofer - 500W - 98dB |
| Cms | 0.13mm/N |
| Coil | 99.2mm |
| Depth | 153.5mm |
| Fs | 39Hz |
| Impedance | 8Ω (Re 5.6Ω) |
| Impedance (Ohm) | 8 ohm |
| Inch | 15' |
| Le | 1.04mH |
| Manufacturer | SB Audience |
| Materials | Till |
| Mms | 122.3g |
| Power | 500W AES |
| Power (RMS) | 200+ Watt |
| Price Type | each |
| Prms | 500W |
| Qes | 0.32 |
| Qms | 7.69 |
| Qts | 0.3 |
| QTY | 1 |
| Re | 5.6Ω |
| Rms | 3.9kg/s |
| Sd | 0.8657L |
| Sens. | 98dB |
| Series | SB Pro-woofers |
| Size | 15' |
| Type | Woofer |
| Vas | 139.4L |
| Width | 394mmØ |
| Zn | 8Ω |
| Freq. | 39-3700Hz |
| Pmax | 1000W |
| Page | 40 |
| eBook | Link to eBook |
| Brand. | SB Accoustics |
| SKU No | WES_ROSSO-15MW500_1 |
