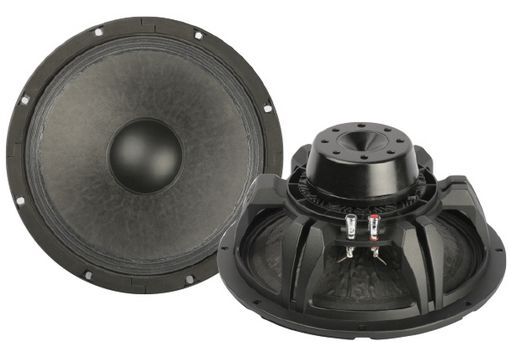

SB AUDIENCE NERO 12 MID-WOOFER 400W
SB AUDIENCE NERO 12 MID-WOOFER 400W
SKU code: WES_NERO-12MWN400D_1
This is a SB AUDIENCE NERO 12 MID-WOOFER 400W of brand SB Audience.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SB AUDIENCE NERO 12 MID-WOOFER 400W |
| Notes | Proprietary cone paper material with manila pulpCast aluminium chassis & Strong neodymium motor3 voice coil with APC (Advanced Polymer Coating)Copper sleeve for low inductance and reduced distortionInterleaved Sandwich Voice coil technologyMinimum damping fibre glass voice coil former 1. AES standard, test mode with continuous pink noise signal (6 dB crest factor; 2 hours) within the Fo to 10Fo power calculated on rated nominal impedance. Loudspeaker in free air 2. Maximum power is defined as 3dB greater than nominal power. |
| Description | 12' - Midwoofer - 400W - 97dB |
| Cms | 0.12mm/N |
| Coil | 75mm |
| Depth | 133.3mm |
| Fs | 55Hz |
| Impedance | 8Ω (Re 5.3Ω) |
| Impedance (Ohm) | 8 ohm |
| Inch | 12' |
| Le | 0.22mH |
| Manufacturer | SB Audience |
| Materials | Till |
| Mms | 70.1g |
| Power | 400W AES |
| Power (RMS) | 200+ Watt |
| Price Type | each |
| Prms | 400W |
| Qes | 0.4 |
| Qms | 11.56 |
| Qts | 0.38 |
| QTY | 1 |
| Re | 5.3Ω |
| Rms | 2.1kg/s |
| Sd | 0.5433L |
| Sens. | 97dB |
| Series | SB Pro-mid woofers |
| Size | 12' |
| Type | Mid woofer |
| Vas | 48.3L |
| Width | 322.5mmØ |
| Zn | 8Ω |
| Freq. | 55-6100Hz |
| Pmax | 800W |
| Page | 39 |
| eBook | Link to eBook |
| SKU No | WES_NERO-12MWN400D_1 |
