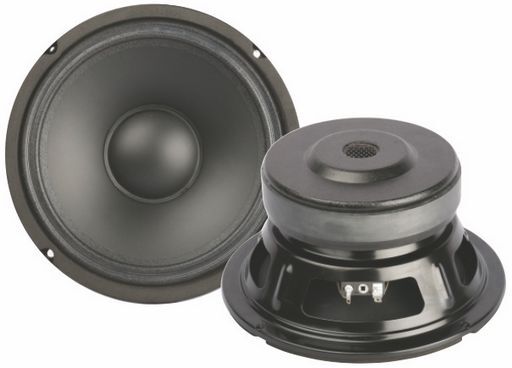

SB AUDIENCE BIANCO 8 MID-WOOFER 125W
SB AUDIENCE BIANCO 8 MID-WOOFER 125W
SKU code: WES_BIANCO-8MW125_1
This is a SB AUDIENCE BIANCO 8 MID-WOOFER 125W of brand SB Audience.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SB AUDIENCE BIANCO 8 MID-WOOFER 125W |
| Notes | High power heavy-duty commercial grade speaker driver. Stamped steel basket with double half roll foam surround damped. Ferrite magnet, copper clad aluminium coil. High efficiency design.Proprietary cone paper material made in-house2 voice coil with APC (Advanced Polymer Coating)Vented back plate for reduced compressionCCAW voice coil wire for reduced moving massMinimum damping fibre glass voice coil formerLong life silver lead wires 1. AES standard, test mode with continuous pink noise signal (6 dB crest factor; 2 hours) within the Fo to 10Fo power calculated on rated nominal impedance. Loudspeaker in free air 2. Maximum power is defined as 3dB greater than nominal power. |
| Description | 8” - Midwoofer - 125W - 94dB |
| Cms | 0.14mm/N |
| Coil | 49.5mm |
| Depth | 99mm |
| Fs | 88Hz |
| Impedance | 8Ω (Re 5.6Ω) |
| Impedance (Ohm) | 8 ohm |
| Inch | 8' |
| Le | 0.52mH |
| Manufacturer | SB Audience |
| Materials | Till |
| Mms | 23.3g |
| Power | 125W AES |
| Power (RMS) | 101-150 Watt |
| Price Type | each |
| Prms | 125W |
| Qes | 0.55 |
| Qms | 13.09 |
| Qts | 0.52 |
| QTY | 1 |
| Re | 5.6Ω |
| Rms | 1kg/s |
| Sd | 0.2243L |
| Sens. | 94dB |
| Series | SB Pro-woofers |
| Size | 8' |
| Type | Woofer |
| Vas | 9.8L |
| Width | 205.6mmØ |
| Zn | 8Ω |
| Freq. | 88-8000Hz |
| Pmax | 250W |
| Page | 37 |
| eBook | Link to eBook |
| SKU No | WES_BIANCO-8MW125_1 |
