SB ACOUSTICS SPEAKER KITS - MICRO C
PARTS SOLD SEPARATE
SKU code: WES_SB12CACS25-4_2
This is a SB ACOUSTICS SPEAKER KITS - MICRO C of brand SB Acoustics.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SB ACOUSTICS SPEAKER KITS - MICRO C |
| Notes | PARTS SOLD SEPARATE The Micro-C is a compact 2-way ideal for bookshelf, desktop, and smaller system use. Available in a sports-car colour scheme of two pac premium finish in Lambo orange. Treat yourself to far better sound quality than comparable pre-assembled consumer speakers can offer. This little speaker kit packs a punch and sounds great doing it! The kit is available with everything required to make a stereo pair of speakers. The cabinets are completely assembled. The driver holes are precision cut for flush mounting. A slotted port is built into the front baffle. The rear of the cabinet is pre-drilled for the included binding posts. Internal damping material and driver mounting hardware is included. The crossovers (sold separate) are pre-wired and terminated with slide on quick connects for the drivers. No soldering is required, so kit assembly can be completed very quickly with a screwdriver. Cabinets are sold in pairs (order one to receive a pair). Drivers and crossover are sold separate.SB Acoustics Speaker Kits. Cabinets are available fully assembled, then you just add the drivers and crossovers which are assembled and complete with wiring. Some items may have shipment delay from the overseas factory. Please contact us for scheduling.Cabinets are available painted in matte satin or high glossHigh performance compact design 262x132x170mm (4.2Kg)Optimized for SB Acoustic Ceramic Cone Mid-WoofersExcellent components, high quality crossover networkFront firing integrated slot port extends bass to <68HzSolid single-wiring binding posts included with cabinets4Ω 65-28000Hz +/-3dB 85dB(2.83V/1m) 25-100W max. Cabinets and crossovers are each sold in pairs (order one to receive a pair). Drivers are sold as single units. |

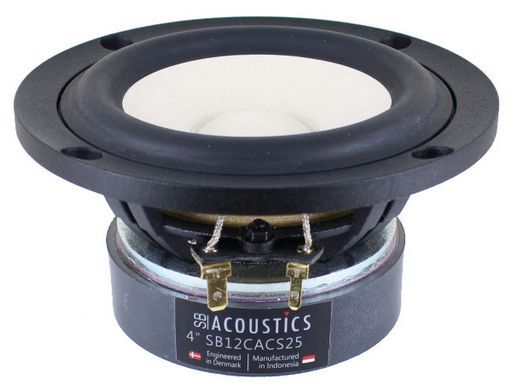

| Description | 4' mid-woofer Ceramic Cone |
| Power | 30Wrms |
| Size | 4' |
| Colour | Ceramic White |
| Sold As | Single |
| Manufacturer | SB Acoustics |
| eBook | Link to eBook |
| Zn | 0.26mH |
| Le | 0.26mH |
| Qts | 0.31 |
| Qes | 0.33 |
| Mag. | 0.4kg |
| Rms | 0.4kg/s |
| Power (RMS) | 0-50 Watt |
| QTY | 1 |
| Flux (lm) | 1.07T |
| Cms | 1.6mm/N |
| Diam. | 100mmØ |
| Xmax | 10mm |
| Width | 123mmØ |
| Page | 23 |
| Coil | 25.4mmØ |
| Re | 3.1Ω |
| Prms | 30W |
| Inch | 4 |
| Impedance (Ohm) | 4 ohm |
| Bl | 4.3Tm |
| Qms | 4.89 |
| Impedance | 4Ω (Re 3.1Ω) |
| Vas | 5.7L |
| Sd | 50cm² |
| Fs | 51Hz |
| Mms | 6.1g |
| Depth | 60.7mm |
| Sens. | 88dB |
| Materials | Ceramic |
| Series | Ceramic Cone |
| Price Type | each |
| Type | Mid-Woofer |
| SKU No | WES_SB12CACS25-4_2 |
