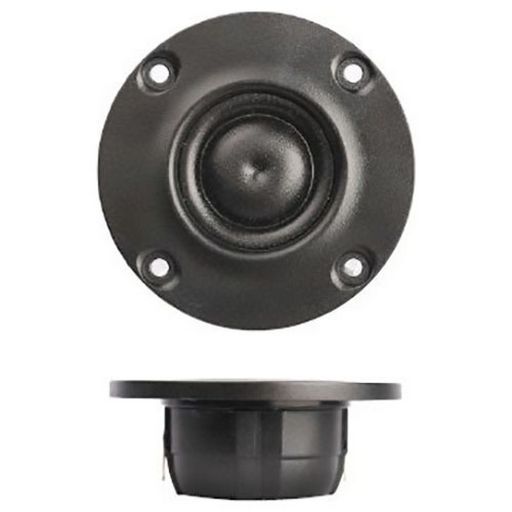

SB ACOUSTICS ¾ RING DOME TWEETER - RDCN
SB ACOUSTICS ¾ RING DOME TWEETER - RDCN
SKU code: WES_SB21RDCN-C000-4_1
This is a SB ACOUSTICS ¾ RING DOME TWEETER - RDCN of brand SB Acoustics.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
TECHNICAL SHEET | |
---|---|
Title | SB ACOUSTICS ¾ RING DOME TWEETER - RDCN |
Notes | 21mm Patented ring dome, neodymium motor, injection faceplate with chamberNon-resonant diaphragm design for minimum high frequency break-upCopper cap for reduced voice coil inductance and minimum phase shiftCompact low distortion neodymium motor systemNon-resonant rear chamber with optimized damping for improved dynamicsCCAW voice coil for low moving massLong life silver lead wiresLow resonance frequency |
Description | Dome |
Coil | 20.4mmØ |
Depth | 15.9mm |
Fs | 850Hz |
Impedance | 4Ω (Re 3.1Ω) |
Impedance (Ohm) | 4 ohm |
Inch | 0.8 |
Le | 0.04mH |
Mag. | 0.01kg |
Manufacturer | SB Acoustics |
Mms | 0.25g |
Power | 40Wrms |
Power (RMS) | 0-50 Watt |
Price Type | each |
Prms | 40W |
Qes | 2.45 |
Qms | 2.71 |
Qts | 1.28 |
QTY | 1 |
Re | 3.1Ω |
Sd | 4.6cm² |
Sens. | 89.5dB |
Series | Dome Tweeter |
Size | 0.8' |
Type | Tweeter |
Width | 58mmØ |
Zn | 0.04mH |
Bl | 1.3Tm |
Xmax | 0.5mm |
Flux (lm) | 0.9T |
Page | 19 |
eBook | Link to eBook |
SKU No | WES_SB21RDCN-C000-4_1 |
