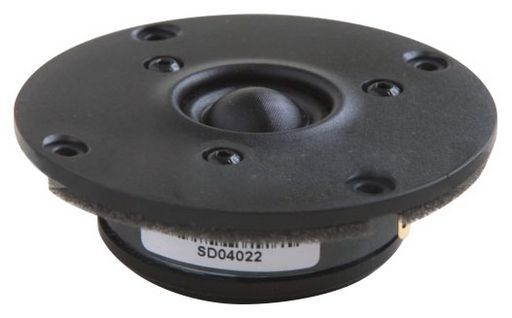

SB ACOUSTICS ¾ DOME TWEETER - SDC
20MMØ SOFT DOME TEXTILE - 92MMØ ACOUSTIC LIP
SKU code: WES_SB21SDC-C000-4_1
This is a SB ACOUSTICS ¾ DOME TWEETER - SDC of brand SB Acoustics.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SB ACOUSTICS ¾ DOME TWEETER - SDC |
| Notes | 20MMØ SOFT DOME TEXTILE - 92MMØ ACOUSTIC LIP Large surround dome for increased acoustic output. Dual balanced compression chamber for improved dynamics. Copper cap for reduced voice coil inductance and minimum phase shift. Saturation controlled motor system for low distortion. Non-reflective rear chamber with optimized damping for improved dynamics. Flow optimized vented pole piece for optimum coupling to rear chamber. CCAW voice coil for low moving mass. Long life silver lead wires. Low resonance frequency.Large surround dome for increased acoustic outputDual balanced compression chamber for improved dynamicsCopper cap for reduced voice coil inductance and minimum phase shiftSaturation controlled motor system for low distortionNon-reflective rear chamber with optimized damping for improved dynamicsFlow optimized vented pole piece for optimum coupling to rear chamberCCAW voice coil for low moving massLong life silver lead wiresLow resonance frequency |
| Description | Dome |
| Type | Tweeter |
| Size | 0.8' |
| Price Type | each |
| Power | 40Wrms |
| Coil | 20.4mmØ |
| Width | 92mmØ |
| QTY | 1 |
| Impedance | 4Ω (Re 3.1Ω) |
| Depth | 26.5mm |
| Mag. | 0.33kg |
| Sens. | 91dB |
| Re | 3.1Ω |
| Qms | 2.41 |
| Qes | 1.55 |
| Qts | 0.95 |
| Sd | 4.9cm² |
| Fs | 720Hz |
| Mms | 0.25g |
| Zn | 4mH |
| Le | 0.04mH |
| Diam. | 21mmØ |
| Series | Dome Tweeter |
| Manufacturer | SB Acoustics |
| Materials | Textile |
| Impedance (Ohm) | 4 ohm |
| Power (RMS) | 0-50 Watt |
| Inch | 0.8 |
| Bl | 1.5Tm |
| Xmax | 1mm |
| Flux (lm) | 1.02T |
| eBook | Link to eBook |
| Page | 19 |
| Prms | 40W |
| SKU No | WES_SB21SDC-C000-4_1 |
