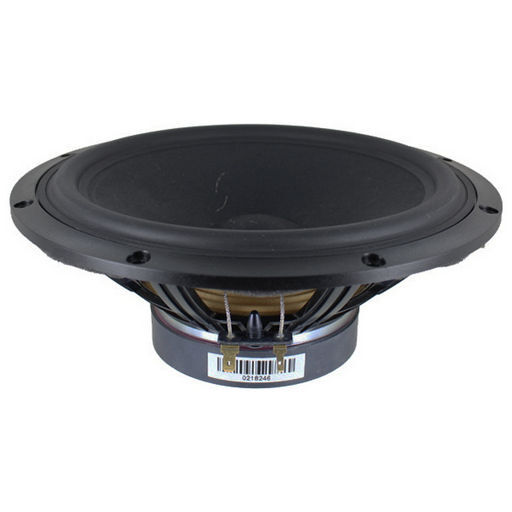

SB ACOUSTICS 8 WOOFER - PFCR
ROUND PLASTIC CHASSIS
SKU code: WES_SB20PFCR30-4_1
This is a SB ACOUSTICS 8 WOOFER - PFCR of brand SB Acoustics.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SB ACOUSTICS 8 WOOFER - PFCR |
| Notes | ROUND PLASTIC CHASSIS This 8 Norex fibre paper cone woofer is a great value for this build quality and performance. The specifications make it a good choice for many different enclosure types. An extended and smooth frequency response suggests simple crossovers, even none at all.Vented reinforced plastic chassisProprietary cone material with natural fibres made in-houseSoft low damping rubber surround for improved transient responseLarge spider for improved linearityOptimised motor systemVented coil former for low compressionNon-resonant long life lead wires |
| Description | 30mm Voice coil, paper cone, rubber surround, ferrite motor, round mounting injection chassis |
| Impedance | 4Ω (Re 3.4Ω) |
| Fs | 34Hz |
| Sens. | 92.5dB |
| Power | 50Wrms |
| Qms | 2.78 |
| Qes | 0.37 |
| Qts | 0.33 |
| Vas | 66.2L |
| Coil | 30.5mmØ |
| Depth | 82.4mm |
| Impedance (Ohm) | 4 ohm |
| Inch | 8' |
| Cms | 1mm/N |
| Le | 0.71mH |
| Mag. | 0.54kg |
| Manufacturer | SB Acoustics |
| Diam. | 218mmØ |
| Mms | 22.4g |
| Power (RMS) | 0-50 Watt |
| Price Type | each |
| Prms | 50W |
| QTY | 1 |
| Re | 3.4Ω |
| Sd | 216cm² |
| Materials | Papyrus |
| Series | Polymer chassis |
| Page | 31 |
| Size | 8' |
| Type | Woofer |
| Width | 218mmØ |
| Zn | 0.71mH |
| Rms | 1.7kg/s |
| eBook | Link to eBook |
| Flux (lm) | 1.2T |
| Xmax | 11.5mm |
| Bl | 6.6Tm |
| SKU No | WES_SB20PFCR30-4_1 |
