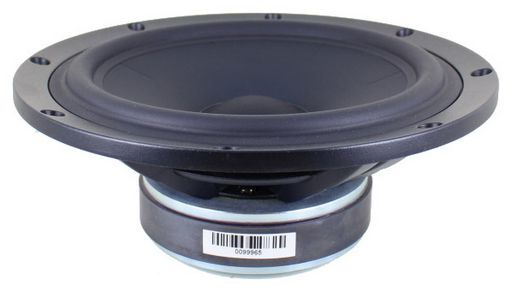

SB ACOUSTICS 8 WOOFER - ALUMINIUM NBACS
ALUMINIUM CONE WIDE BANDWIDTH DRIVER BLACK
SKU code: WES_SB23NBACS45-4_1
This is a SB ACOUSTICS 8 WOOFER - ALUMINIUM NBACS of brand SB Acoustics.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SB ACOUSTICS 8 WOOFER - ALUMINIUM NBACS |
| Notes | ALUMINIUM CONE WIDE BANDWIDTH DRIVER BLACK Soft low damping rubber surround for improved transient response. Geometrically reinforced aluminium cone for improved break-up control. Shorting ring in motor system for reduced distortion. Vented pole piece for reduced compression. Vented cast aluminium chassis for optimum strength and low compression. Shallow design. Non-conducting fibre glass voice coil former for minimum damping. CCAW voice coil for reduced moving mass. Long life silver lead wires.Soft low damping rubber surround for improved transient responseGeometrically reinforced aluminium cone for improved break-up controlShorting ring in motor system for reduced distortionVented pole piece for reduced compressionVented cast aluminium chassis for optimum strength and low compressionShallow designNon-conducting fibre glass voice coil former for minimum dampingCCAW voice coil for reduced moving massLong life silver lead wires |
| Description | - |
| Type | Woofer |
| Size | 8' |
| Price Type | each |
| Power | 60Wrms |
| Coil | 45.5mmØ |
| Width | 234mmØ |
| QTY | 1 |
| Impedance | 4Ω (Re 3.0Ω) |
| Depth | 80.7mm |
| Mag. | 0.8kg |
| Sens. | 90dB |
| Re | 3.0Ω |
| Qms | 5.4 |
| Qes | 0.35 |
| Qts | 0.33 |
| Vas | 95L |
| Sd | 216cm² |
| Cms | 1.45mm/N |
| Fs | 23Hz |
| Mms | 32g |
| Zn | 0.27mH |
| Le | 0.27mH |
| Rms | 0.9kg/s |
| Diam. | 203mmØ |
| Manufacturer | SB Acoustics |
| Impedance (Ohm) | 4 ohm |
| Power (RMS) | 51-100 Watt |
| Inch | 8 |
| Bl | 6.7Tm |
| Xmax | 13mm |
| Flux (lm) | 0.86T |
| eBook | Link to eBook |
| Page | 32 |
| Prms | 60W |
| Materials | Ceramic |
| Series | Ceramic Cone |
| SKU No | WES_SB23NBACS45-4_1 |
