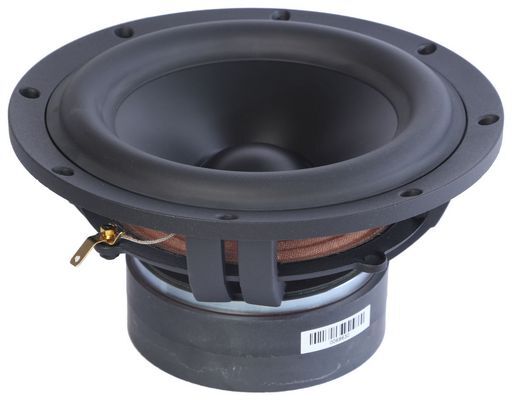

SB ACOUSTICS 8 SUB WOOFER - MFCL LONG STROKE
LONG STROKE - DOUBLE MAGNET
SKU code: WES_SB23MFCL45-4_1
This is a SB ACOUSTICS 8 SUB WOOFER - MFCL LONG STROKE of brand SB Acoustics.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SB ACOUSTICS 8 SUB WOOFER - MFCL LONG STROKE |
| Notes | LONG STROKE - DOUBLE MAGNET Vented cast aluminium chassis for optimum strength and low compression. Unique mineral filled polypropylene cone material, made in-house with extra stiffness. Extended roll rubber surround for improved transient response and SPL. Non-conducting fibre glass CCAW voice coil former. Long life silver lead wires. Vented pole piece and aluminium chassis. Optimised for compact enclosures.Long stroke designLinear high stability suspensionLow damping rubber surroundLong copper voice coilNon-conducting reinforced fibre glass coil formerVery stiff mineral filled Polypropylene coneVented cast aluminium chassisLarge vented motor systemLong life silver lead wiresOptimized for smaller enclosures |
| Description | - |
| Type | Subwoofer |
| Size | 8' |
| Price Type | each |
| Power | 150Wrms |
| Coil | 45.5mmØ |
| Width | 234mmØ |
| QTY | 1 |
| Impedance | 4Ω (Re 3.0Ω) |
| Depth | 137.7mm |
| Mag. | 2kg |
| Sens. | 87.5dB |
| Re | 3.0Ω |
| Qms | 7.7 |
| Qes | 0.36 |
| Qts | 0.34 |
| Vas | 37L |
| Sd | 210cm² |
| Cms | 0.59mm/N |
| Fs | 27Hz |
| Mms | 59g |
| Zn | 0.73mH |
| Le | 0.73mH |
| Rms | 1.3kg/s |
| Diam. | 187mmØ |
| Series | Poly Cones |
| Manufacturer | SB Acoustics |
| Materials | Polypropylene |
| Impedance (Ohm) | 4 ohm |
| Power (RMS) | 101-150 Watt |
| Inch | 8 |
| Bl | 9.6Tm |
| Xmax | 24mm |
| Flux (lm) | 1.03T |
| eBook | Link to eBook |
| Prms | 150W |
| Page | 33 |
| SKU No | WES_SB23MFCL45-4_1 |
