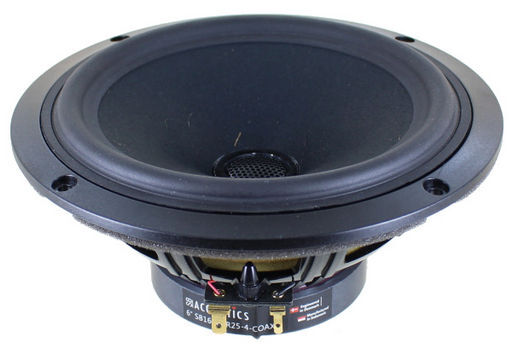

This is a SB ACOUSTICS 6.5 MID-WOOFER - PFCR COAXIAL of brand SB Acoustics.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title SB ACOUSTICS 6.5 MID-WOOFER - PFCR COAXIAL
Notes 25mm Voice coil, paper cone, rubber surround, ferrite motor, round mounting injection chassis, coaxial mid-woofer. Vented reinforced plastic chassis. Proprietary cone material with natural fibres made in-house. Soft low damping rubber surround for improved transient response. Optimised motor system. Non-resonant long life lead wires. Compact large surround dome tweeter..
Description25mm Voice coil, paper cone, rubber surround, ferrite motor, round mounting injection chassis, coaxial midwoofer
Coil25.4mmØ
Depth76.7mm
Fs36Hz
Impedance4Ω (Re 3.2Ω)
Impedance (Ohm)4 ohm + 4 ohm
Inch6'
Le0.31mH
Mag.0.36kg
ManufacturerSB Acoustics
Mms12.5g
Power40Wrms
Power (RMS)0-50 Watt
Price Typeeach
Prms40W
Qes0.35
Qms2.6
Qts0.31
QTY1
Re3.2Ω
Sd119cm²
Sens.90dB
SeriesPolymer chassis
Size6'
TypeMid-Woofer + tweeter
Vas31.3L
Width176mmØ
Zn0.31mH
Cms1.56mm/N
Bl5.1Tm
Rms1.1kg/s
Xmax9.3mm
Flux (lm)1.1T
Page28
eBookLink to eBook
SKU NoWES_SB16PFCR25-4-COAX_1
