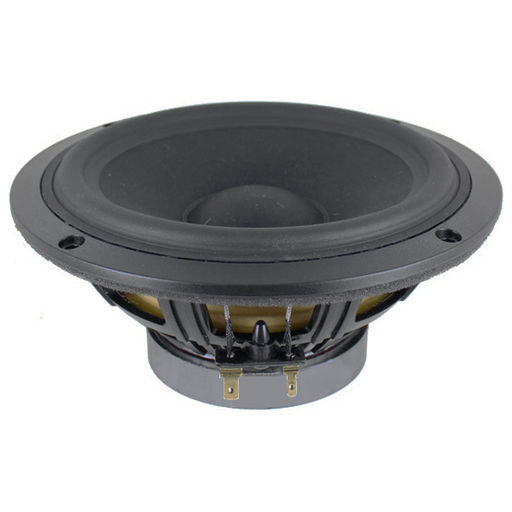

SB ACOUSTICS 6.5 MID-WOOFER - PFCR
SB ACOUSTICS 6.5 MID-WOOFER - PFCR
SKU code: WES_SB16PFCR25-4_1
This is a SB ACOUSTICS 6.5 MID-WOOFER - PFCR of brand SB Acoustics.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SB ACOUSTICS 6.5 MID-WOOFER - PFCR |
| Notes | 25mm Voice coil, paper cone, rubber surround, ferrite motor, round mounting injection chassis Available in 4 ohm and 8 ohm modelsVented reinforced plastic chassis with a round outer frameProprietary cone material with natural fibres made in-houseSoft low damping rubber surround for improved transient responseOptimised motor systemVented coil former for low compressionNon-resonant long life lead wires |
| Description | 25mm Voice coil, paper cone, rubber surround, ferrite motor, round mounting injection chassis |
| Coil | 25.4mmØ |
| Depth | 76.7mm |
| Fs | 35Hz |
| Impedance | 4Ω (Re 3.2Ω) |
| Impedance (Ohm) | 4 ohm |
| Inch | 6' |
| Le | 0.56mH |
| Mag. | 0.36kg |
| Manufacturer | SB Acoustics |
| Mms | 13.8g |
| Power | 40Wrms |
| Power (RMS) | 0-50 Watt |
| Price Type | each |
| Prms | 40W |
| Qes | 0.39 |
| Qms | 2.76 |
| Qts | 0.34 |
| QTY | 1 |
| Re | 3.2Ω |
| Sd | 124cm² |
| Sens. | 89.5dB |
| Series | Polymer chassis |
| Size | 6' |
| Type | Woofer |
| Vas | 32.7L |
| Width | 176mmØ |
| Zn | 0.56mH |
| eBook | Link to eBook |
| Flux (lm) | 1.06T |
| Rms | 1.1kg/s |
| Cms | 1.5mm/N |
| Page | 28 |
| Bl | 5Tm |
| Xmax | 9mm |
| SKU No | WES_SB16PFCR25-4_1 |
