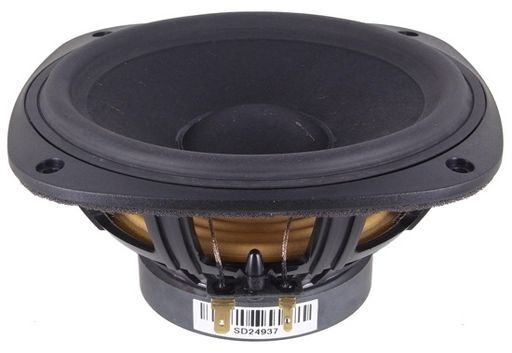

This is a SB ACOUSTICS 6.5 MID-WOOFER - PFC of brand SB Acoustics.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title SB ACOUSTICS 6.5 MID-WOOFER - PFC
Notes MINERAL REINFORCED PLASTIC FRAME Vented reinforced plastic chassis. Proprietary cone material with natural fibres made in-house. Soft low damping rubber surround for improved transient response. Optimized motor system. Vented coil former for low compression. Non-resonant long life lead wires.
Description-
TypeMid-Woofer
Size6'
Price Typeeach
Power40Wrms
Coil25.4mmØ
Width160mmØ
QTY1
Impedance4Ω (Re 3.2Ω)
Depth77mm
Mag.0.36kg
Sens.89.5dB
Re3.2Ω
Qms2.76
Qes0.39
Qts0.34
Vas32.7L
Sd124cm²
Cms1.5mm/N
Fs35Hz
Mms13.8g
Zn0.56mH
Le0.56mH
Rms1.1kg/s
Diam.152mmØ
SeriesPolymer chassis
ManufacturerSB Acoustics
MaterialsPapyrus
Impedance (Ohm)4 ohm
Power (RMS)0-50 Watt
Inch6
Bl5Tm
Xmax9mm
Flux (lm)1.06T
eBookLink to eBook
Page28
Prms40W
Brand.SB Acoustics
SKU NoWES_SB16PFC25-4_1
