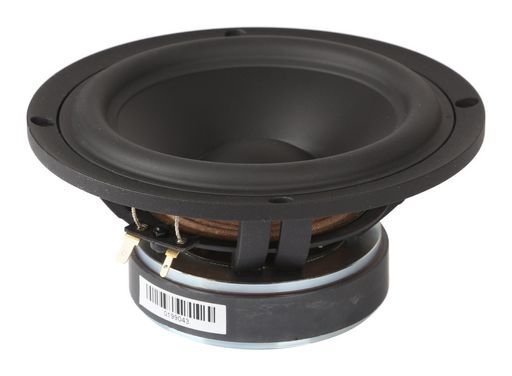

SB ACOUSTICS 6.5 MID-WOOFER - NRXC-II
SB ACOUSTICS 6.5 MID-WOOFER - NRXC-II
SKU code: WES_SB17NRX2C35-4_1
This is a SB ACOUSTICS 6.5 MID-WOOFER - NRXC-II of brand SB Acoustics.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SB ACOUSTICS 6.5 MID-WOOFER - NRXC-II |
| Notes | Newly developed Norex non-resonant poly-coated fibre cone. Low damping SBR rubber surround with high exertion and resilience. Open structure cast frame for reduced reflections and compression. Aluminium alloy for light weight, non-magnetic and extra rigidity. Shorting Copper cap on pole piece. Non-inductive CCAW fibre glass 30mm coil former. Silver lead wires. Vented pole piece.Vented cast aluminum chassis for optimum strength and low compressionProprietary cone material with natural fibers made in-houseSoft low damping rubber surround for transient responseNon-conducting fiber glass voice coil former for minimum dampingExtended copper sleeve on pole piece for low inductance and low distortionVented coil formerCCAW voice coil for reduced moving massLong life silver lead wiresVented pole piece for reduced compression |
| Description | - |
| Impedance | 4Ω (Re 3.1Ω) |
| Fs | 34Hz |
| Sens. | 90dB |
| Power | 50Wrms |
| Qms | 4.74 |
| Qes | 0.34 |
| Qts | 0.32 |
| Vas | 31.8L |
| Coil | 35.5mmØ |
| Depth | 75mm |
| Diam. | 152mmØ |
| Impedance (Ohm) | 4 ohm |
| Inch | 6 |
| Le | 0.13mH |
| Mag. | 0.54kg |
| Manufacturer | SB Acoustics |
| Materials | Norex Paper Cone |
| Mms | 13.8g |
| Power (RMS) | 0-50 Watt |
| Price Type | each |
| QTY | 1 |
| Re | 3.1Ω |
| Sd | 118cm² |
| Series | Natural fibre cone |
| Size | 6' |
| Type | Mid-Woofer |
| Width | 171mmØ |
| Zn | 0.13mH |
| Cms | 1.61mm/N |
| Bl | 5.1Tm |
| Rms | 0.6kg/s |
| Xmax | 11mm |
| Flux (lm) | 0.93T |
| eBook | Link to eBook |
| Page | 30 |
| SKU No | WES_SB17NRX2C35-4_1 |
