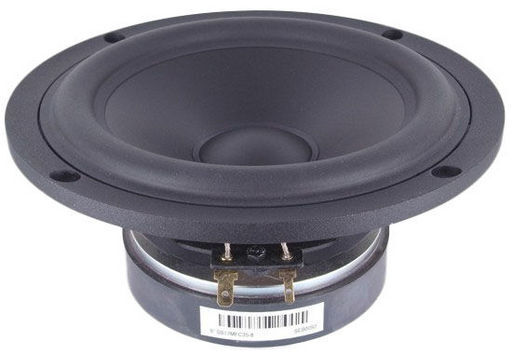

SB ACOUSTICS 6.5 MID-WOOFER - MFC
ALUMINIUM CHASSIS - POLYPROPYLENE CONE
SKU code: WES_SB17MFC35-8_1
This is a SB ACOUSTICS 6.5 MID-WOOFER - MFC of brand SB Acoustics.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SB ACOUSTICS 6.5 MID-WOOFER - MFC |
| Notes | ALUMINIUM CHASSIS - POLYPROPYLENE CONE Vented cast aluminium chassis for optimum strength and low compression. Mineral filled Poly-cone made in-house. Soft low damping rubber surround for improved transient response. Non-conducting fibre glass voice coil former for minimum damping. Extended copper sleeve on pole piece for low inductance and low distortion. CCAW voice coil for reduced moving mass. Long life silver lead wires. Vented pole piece for reduced compression. |
| Description | 6.5' PP Mid-Woofer |
| Type | Mid-Woofer |
| Size | 6' |
| Price Type | each |
| Power | 60Wrms |
| Coil | 35.5mmØ |
| Width | 171mmØ |
| QTY | 1 |
| Impedance | 8Ω (Re 5.7Ω) |
| Depth | 86mm |
| Mag. | 0.54kg |
| Sens. | 88dB |
| Re | 5.7Ω |
| Qms | 4.9 |
| Qes | 0.4 |
| Qts | 0.37 |
| Vas | 39L |
| Sd | 118cm² |
| Cms | 1.97mm/N |
| Fs | 33Hz |
| Mms | 11.8g |
| Zn | 0.15mH |
| Le | 0.15mH |
| Rms | 0.5kg/s |
| Diam. | 152mmØ |
| Series | Poly Cones |
| Manufacturer | SB Acoustics |
| Materials | Polypropylene |
| Impedance (Ohm) | 8 ohm |
| Power (RMS) | 51-100 Watt |
| Inch | 6 |
| Bl | 5.9Tm |
| Xmax | 11mm |
| Flux (lm) | 1T |
| eBook | Link to eBook |
| Page | 30 |
| Prms | 60W |
| Brand. | SB Acoustics |
| Sold As | Single |
| SKU No | WES_SB17MFC35-8_1 |
