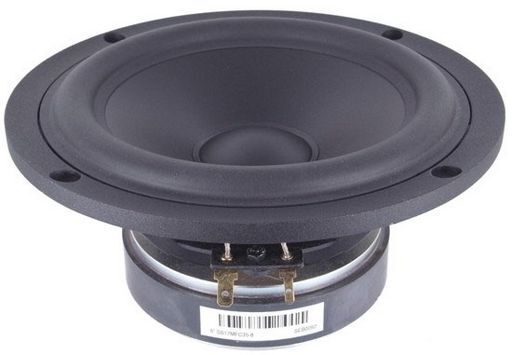

This is a SB ACOUSTICS 6.5 MID-WOOFER - MFC of brand SB Acoustics.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title SB ACOUSTICS 6.5 MID-WOOFER - MFC
Notes ALUMINIUM CHASSIS - POLYPROPYLENE CONE Vented cast aluminium chassis for optimum strength and low compression. Mineral filled strengthened Poly-cone made in-house. Soft low damping rubber surround for improved transient response. Non-conducting fibre glass voice coil former for minimum damping. Extended copper sleeve on pole piece for low inductance and low distortion. CCAW voice coil for reduced moving mass. Vented pole piece for reduced compression.
Description-
TypeMid-Woofer
Size6'
Price Typeeach
Power60Wrms
Coil35.5mmØ
Width171mmØ
QTY1
Impedance4Ω (Re 3.1Ω)
Depth86mm
Mag.0.54kg
Sens.90dB
Re3.1Ω
Qms5.2
Qes0.3
Qts0.28
Vas45L
Sd118cm²
Cms2.29mm/N
Fs30Hz
Mms12.3g
Zn0.13mH
Le0.13mH
Rms0.45kg/s
Diam.152mmØ
SeriesPoly Cones
ManufacturerSB Acoustics
MaterialsPolypropylene
Impedance (Ohm)4 ohm
Power (RMS)51-100 Watt
Inch6
Bl4.9Tm
Xmax11mm
Flux (lm)1T
eBookLink to eBook
Page30
Prms60W
Brand.SB Acoustics
SKU NoWES_SB17MFC35-4_1
