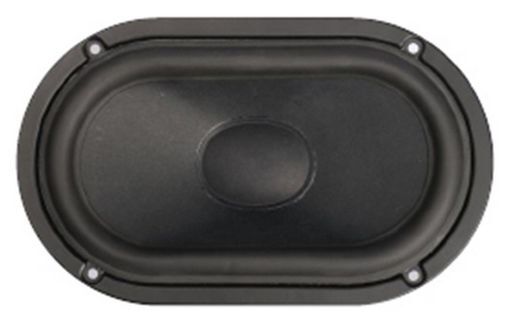

This is a SB ACOUSTICS 5X8 OVAL - SFCR of brand SB Acoustics.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title SB ACOUSTICS 5X8 OVAL - SFCR
Notes LARGE OVAL MID-WOOFER 120 X 220 MM Racetrack design. Hard paper cone (made in-house). Optimised motor system. Non-conductive reinforced vented coil former. Low damping rubber surround. Long life silver lead wires. Vented chassis.Racetrack designHard paper cone (made in-house)Optimized motor systemNon-conductive reinforced vented coil formerLow damping rubber surroundLong life silver lead wiresVented chassis
Description-
TypeMid-Woofer
Size5x8'
Price Typeeach
Power60Wrms
Coil38.5mmØ
Width220x120mmØ
QTY1
Impedance8Ω (Re 6.2Ω)
Depth84.7mm
Mag.0.54g
Sens.87dB
Re6.2Ω
Qms7.11
Qes0.45
Qts0.42
Vas48.3L
Sd178cm²
Cms1.08mm/N
Fs32Hz
Mms23g
Zn1.3mH
Le3mH
Rms0.65kg/s
SeriesOval
ManufacturerSB Acoustics
Impedance (Ohm)8 ohm
Power (RMS)51-100 Watt
Inch5x8'
Bl8Tm
Xmax10mm
Flux (lm)0.94T
eBookLink to eBook
Weight1.66kg
Page24
Prms60W
MaterialsNorex
SKU NoWES_SB15SFCR39-8_1
