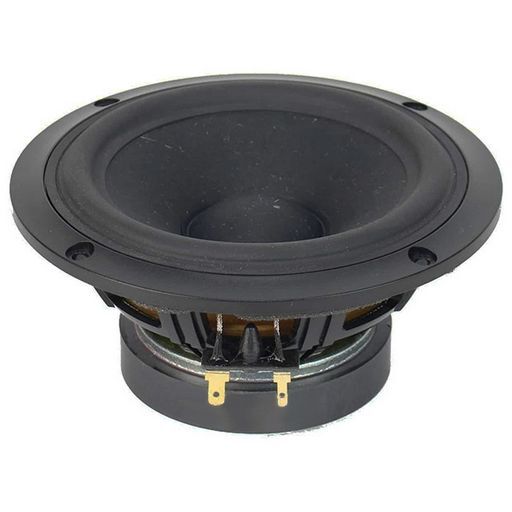

This is a SB ACOUSTICS 5 MID-WOOFER - PFCR of brand SB Acoustics.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title SB ACOUSTICS 5 MID-WOOFER - PFCR
Notes MINERAL REINFORCED PLASTIC FRAME 25mm Voice coil, paper cone, rubber surround, ferrite motor, round mounting injection chassis Available in 4 ohm and 8 ohm modelsVented reinforced plastic chassisProprietary cone material with natural fibres made in-houseSoft low damping rubber surround for improved transient responseOptimized motor systemVented coil former for low compressionNon-resonant long life lead wires
Description25mm Voice coil, paper cone, rubber surround, ferrite motor, round mounting injection chassis
Coil25.4mmØ
Depth69mm
Fs45Hz
Impedance8Ω (Re 5.0Ω)
Impedance (Ohm)8 ohm
Inch5'
Le0.77mH
Mag.0.36kg
ManufacturerSB Acoustics
Mms10g
Power40Wrms
Power (RMS)0-50 Watt
Price Typeeach
Prms40W
Qes0.39
Qms2.2
Qts0.33
QTY1
Re5.0Ω
Sd87cm²
Sens.87dB
SeriesPolymer chassis
Size5'
TypeWoofer
Vas13.4L
Width150.5mmØ
Zn0.77mH
eBookLink to eBook
Flux (lm)1.07T
Cms1.25mm/N
Rms1.4kg/s
Page25
Bl6.2Tm
Xmax9mm
SKU NoWES_SB13PFCR25-8_1
