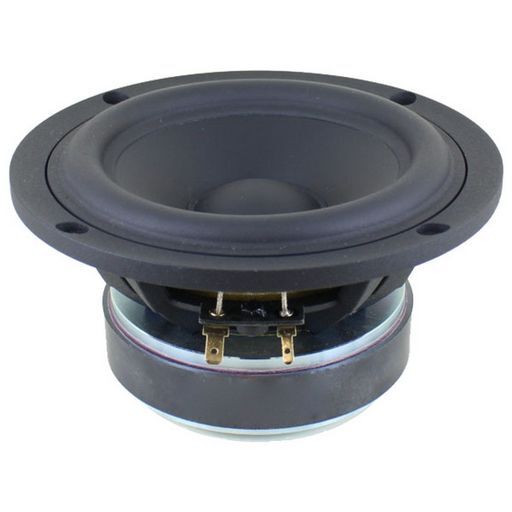

SB ACOUSTICS 5 MID-WOOFER - NRX2C
SB ACOUSTICS 5 MID-WOOFER - NRX2C
SKU code: WES_SB15NRX2C30-4_1
This is a SB ACOUSTICS 5 MID-WOOFER - NRX2C of brand SB Acoustics.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
TECHNICAL SHEET | |
---|---|
Title | SB ACOUSTICS 5 MID-WOOFER - NRX2C |
Notes | 30mm Voice coil, Norex paper cone. Low damping SBR rubber surround with high exertion and resilience. Open structure cast frame for reduced reflections and compression. Aluminium alloy for light weight, non-magnetic and extra rigidity. Shorting Copper cap on pole piece. Non-inductive CCAW fibre glass 30mm coil former. Silver lead wires. Vented pole piece. Available in 4 or 8Ω version.Vented cast aluminium chassis for optimum strength and low compressionNorex® proprietary cone material with natural fibres made in-houseSoft low damping rubber surround for improved transient responseNon-conducting fibre glass voice coil former for minimum dampingExtended copper sleeve on pole piece for low inductance and low distortionCCAW voice coil for reduced moving massLong life silver lead wiresVented pole piece for reduced compression NRX2 is the new version of the NRX Series of speaker drivers. NRX is the Norex proprietary paper cone drivers by SB Acoustics. Through the development phases of some newer generation drivers with different cone materials (Carbon fibre, Polypropylene, Aluminium, Ceramic etc.) other improvements were made to the suspension system, damping, voice coil and coil former. All newer generations included a variety of subtle improvements summing-up over the years to quite a few improvements. The NRX2 takes the learning from many years of further development and brings all of that to the market as a new, but very similar driver series. NRX2 is more detailed, open, dynamic and with lower distortion. In most cases you can substitute NRX to/from NRX2 without the need for crossover modifications. |
Description | Woofer |
Coil | 30.5mmØ |
Depth | 68.3mm |
Fs | 34.5Hz |
Impedance | 4Ω (Re 3.1Ω) |
Impedance (Ohm) | 4 ohm |
Inch | 5' |
Le | 0.12mH |
Mag. | 0.54kg |
Manufacturer | SB Acoustics |
Mms | 9.9g |
Power | 50Wrms |
Power (RMS) | 0-50 Watt |
Price Type | each |
Prms | 50W |
Qes | 0.3 |
Qms | 3.58 |
Qts | 0.28 |
QTY | 1 |
Re | 3.1Ω |
Sd | 82cm² |
Sens. | 89.5dB |
Series | Woofer |
Size | 5' |
Type | Woofer |
Vas | 20.5L |
Width | 150mmØ |
Zn | 0.12mH |
eBook | Link to eBook |
Rms | 0.6kg/s |
Xmax | 10mm |
Flux (lm) | 1T |
Cms | 2.15mm/N |
Page | 27 |
Bl | 4.7Tm |
SKU No | WES_SB15NRX2C30-4_1 |
