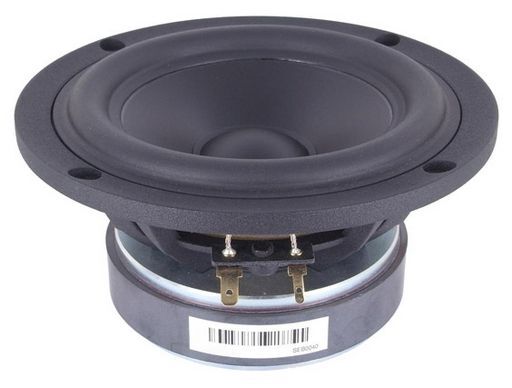

SB ACOUSTICS 5 MID-WOOFER - MFC
ALUMINIUM CHASSIS - POLYPROPYLENE CONE
SKU code: WES_SB15MFC30-8_1
This is a SB ACOUSTICS 5 MID-WOOFER - MFC of brand SB Acoustics.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SB ACOUSTICS 5 MID-WOOFER - MFC |
| Notes | ALUMINIUM CHASSIS - POLYPROPYLENE CONE Vented cast aluminium chassis for optimum strength and low compression. Unique mineral filled polypropylene cone material, made in-house. Soft low damping rubber surround for improved transient response. Non-conducting fibre glass CCAW voice coil former and extended copper sleeve on pole piece for low inductance and low distortion. Long life silver lead wires. Vented pole piece for reduced compression.Vented cast aluminium chassis for optimum strength and low compressionMineral filled PP-cone made in-houseSoft low damping rubber surround for improved transient responseNon-conducting fibre glass voice coil former for minimum dampingExtended copper sleeve on pole piece for low inductance and low distortionCCAW voice coil for reduced moving massLong life silver lead wiresVented pole piece for reduced compression |
| Description | - |
| Type | Mid-Woofer |
| Size | 5' |
| Price Type | each |
| Power | 50Wrms |
| Coil | 30.5mmØ |
| Width | 150mmØ |
| QTY | 1 |
| Impedance | 8Ω (Re 5.7Ω) |
| Depth | 70mm |
| Mag. | 0.54kg |
| Sens. | 87dB |
| Re | 5.7Ω |
| Qms | 4.4 |
| Qes | 0.4 |
| Qts | 0.37 |
| Vas | 17.7L |
| Sd | 82cm² |
| Cms | 1.85mm/N |
| Fs | 39Hz |
| Mms | 9g |
| Zn | 0.14mH |
| Le | 0.14mH |
| Rms | 0.5kg/s |
| Diam. | 127mmØ |
| Series | Poly Cones |
| Manufacturer | SB Acoustics |
| Materials | Polypropylene |
| Impedance (Ohm) | 8 ohm |
| Power (RMS) | 0-50 Watt |
| Inch | 5 |
| Bl | 5.6Tm |
| Xmax | 10mm |
| Flux (lm) | 1T |
| eBook | Link to eBook |
| Page | 27 |
| Prms | 50W |
| Brand. | SB Acoustics |
| SKU No | WES_SB15MFC30-8_1 |
