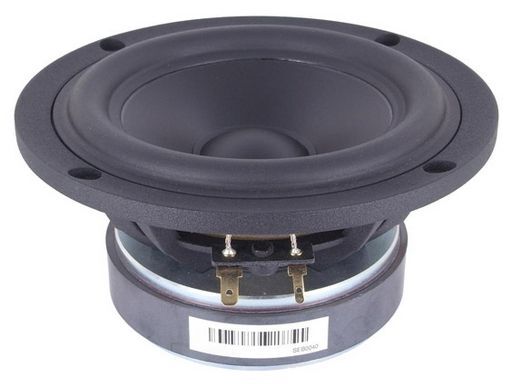

This is a SB ACOUSTICS 5 MID-WOOFER - MFC of brand SB Acoustics.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title SB ACOUSTICS 5 MID-WOOFER - MFC
Notes ALUMINIUM CHASSIS - POLYPROPYLENE CONE Vented cast aluminium chassis for optimum strength and low compression. Unique mineral filled polypropylene cone material, made in-house. Soft low damping rubber surround for improved transient response. Non-conducting fibre glass CCAW voice coil former and extended copper sleeve on pole piece for low inductance and low distortion. Long life silver lead wires. Vented pole piece for reduced compression.
Description-
TypeMid-Woofer
Size5'
Price Typeeach
Power50Wrms
Coil30.5mmØ
Width150mmØ
QTY1
Impedance4Ω (Re 3.1Ω)
Depth70mm
Mag.0.54kg
Sens.90dB
Re3.1Ω
Qms5.26
Qes0.3
Qts0.28
Vas19.4L
Sd82cm²
Cms2.03mm/N
Fs35.5Hz
Mms9.9g
Zn0.12mH
Le0.12mH
Rms0.42kg/s
Diam.127mmØ
SeriesPoly Cones
ManufacturerSB Acoustics
MaterialsPolypropylene
Impedance (Ohm)4 ohm
Power (RMS)0-50 Watt
Inch5
Bl4.8Tm
Xmax10mm
Flux (lm)1T
eBookLink to eBook
Page27
Prms50W
Brand.SB Acoustics
SKU NoWES_SB15MFC30-4_1
