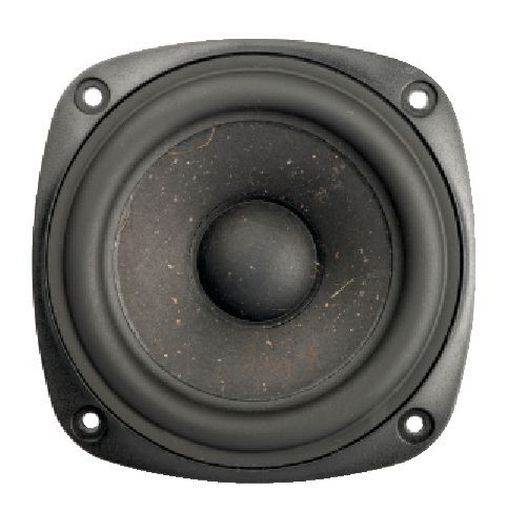

This is a SB ACOUSTICS 4 PASSIVE RADIATOR - PFC of brand SB Acoustics.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title SB ACOUSTICS 4 PASSIVE RADIATOR - PFC
Notes PAPER CONE Vented reinforced plastic chassis. Anodised aluminium cone. Low damping rubber surround. Long stroke linear suspension. Easily adjustable moving mass.Vented reinforced plastic chassisProprietary cone material with natural fibres made in-houseLow damping rubber surroundLong stroke linear suspensionEasily adjustable moving mass
Description4' Passive
Sd50cm²
Fs34Hz
Cms1.2mm/N
Mms18.8g
Rms0.32kg/s
Qms12.5
Vas4.2L
Weight78g
Coil-
Depth28mm
Diam.100mmØ
ImpedancePassive
Impedance (Ohm)Passive
Inch4
ManufacturerSB Acoustics
MaterialsNatural fibre
PowerPassive
Power (RMS)Passive
Price Typeeach
QTY1
RePassive
SeriesNatural fibre cone
Size4'
TypePassive Radiator
Width123mmØ
Xmax9mm
eBookLink to eBook
Page21
SKU NoWES_SB12PFC-00_1
