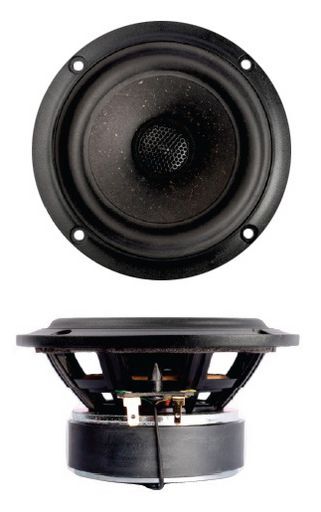

This is a SB ACOUSTICS 4 MID-WOOFER - PFCR COAXIAL of brand SB Acoustics.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title SB ACOUSTICS 4 MID-WOOFER - PFCR COAXIAL
Notes 25mm Voice coil, paper cone, rubber surround, ferrite motor, round mounting injection chassis, coaxial midwoofer. Vented reinforced plastic chassis. Proprietary cone material with natural fibres made in-house. Soft low damping rubber surround for improved transient response. Optimized motor system. Non-resonant long life lead wires. Compact large surround dome tweeter.
Description25mm Voice coil, paper cone, rubber surround, ferrite motor, round mounting injection chassis, coaxial midwoofer
Coil25.4mmØ
Depth59mm
Fs58Hz
Impedance4Ω (Re 3.1Ω)
Impedance (Ohm)4 ohm
Inch4'
Le0.26mH
Mag.0.4kg
ManufacturerSB Acoustics
Mms4.5g
Power30Wrms
Power (RMS)0-50 Watt
Price Typeeach
Prms30W
Qes0.36
Qms4.07
Qts0.33
QTY1
Re3.1Ω
Sd45cm²
Sens.87dB
SeriesPolymer chassis
Size4'
TypeWoofer
Vas4.8L
Width122mmØ
Zn0.26mH
Cms1.66mm/N
Bl3.8Tm
Rms0.4kg/s
Xmax10mm
Flux (lm)1T
Page22
eBookLink to eBook
SKU NoWES_SB12PFCR25-4-COAX_1
