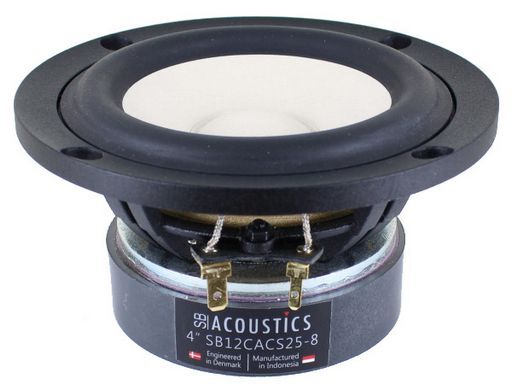

This is a SB ACOUSTICS 4 MID-WOOFER - CACS of brand SB Acoustics.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title SB ACOUSTICS 4 MID-WOOFER - CACS
Notes CERAMIC CONE Vented cast aluminium chassis for optimum strength and low compression. Ceramic cone. Soft low damping rubber surround for improved transient response. Shorting ring in motor system for reduced distortion. Non-conducting fibre glass voice coil former for minimum damping. CCAW voice coil for reduced moving mass. Long life silver lead wires. Vented pole piece for reduced compression.Vented cast aluminium chassis for optimum strength and low compressionCeramic coneSoft low damping rubber surround for improved transient responseShorting ring in motor system for reduced distortionNon-conducting fibre glass voice coil former for minimum dampingCCAW voice coil for reduced moving massLong life silver lead wiresVented pole piece for reduced compression
Description-
TypeMid-Woofer
Size4'
Price Typeeach
Power30Wrms
Coil25.4mmØ
Width123mmØ
QTY1
Impedance8Ω (Re 6.4Ω)
Depth60.7mm
Mag.0.4kg
Sens.85.5dB
Re6.4Ω
Qms4.85
Qes0.4
Qts0.37
Vas6.5L
Sd50cm²
Cms1.84mm/N
Fs51Hz
Mms5.3g
Zn0.34mH
Le0.34mH
Rms0.35kg/s
Diam.100mmØ
ManufacturerSB Acoustics
Impedance (Ohm)8 ohm
Power (RMS)0-50 Watt
Inch4
Bl5.2Tm
Xmax10mm
Flux (lm)1.07T
eBookLink to eBook
Page23
Prms30W
MaterialsCeramic
SeriesCeramic Cone
SKU NoWES_SB12CACS25-8_1
