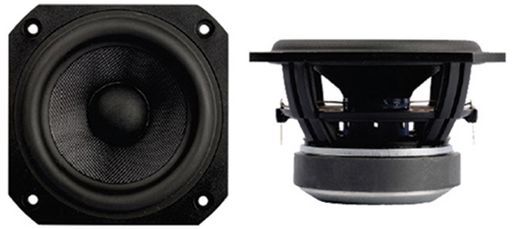

SB ACOUSTICS 3 FULL RANGE - PGC
SB ACOUSTICS 3 FULL RANGE - PGC
SKU code: WES_SB10PGC21-4_1
This is a SB ACOUSTICS 3 FULL RANGE - PGC of brand SB Acoustics.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SB ACOUSTICS 3 FULL RANGE - PGC |
| Notes | Low damping surround and non-conductiveVoice coil former to ensure good dynamicsTransparent sound character with fine detail.Vented voice coil for heat exchange and reduced compression.Light weight CCAW voice coil.Optimised fibre glass cone for smooth response.Compact square chassis for versatile integration. |
| Description | 3' - Full range - 20W - 84dB |
| Cms | 1.14mm/N |
| Coil | 20.4mm |
| Depth | 44.2mm |
| Fs | 89Hz |
| Impedance | 4Ω (Re 3.4Ω) |
| Impedance (Ohm) | 4 ohm |
| Inch | 3' |
| Le | 0.15mH |
| Manufacturer | SB Acoustics |
| Materials | Fibre glass |
| Mms | 2.8g |
| Power | 20Wrms |
| Power (RMS) | 0-50 Watt |
| Price Type | each |
| Prms | 20W |
| Qes | 1.01 |
| Qms | 11.2 |
| Qts | 0.92 |
| QTY | 1 |
| Re | 3.4Ω |
| Rms | 0.14kg/s |
| Sd | 27cm² |
| Sens. | 84dB |
| Series | SB - Full range |
| Size | 3' |
| Type | Full range |
| Vas | 1.2L |
| Width | 77.4mm |
| Zn | 0.15mH |
| Bl | 2.3Tm |
| Xmax | 4.5mm |
| Flux (lm) | 0.8T |
| Page | 20 |
| eBook | Link to eBook |
| Brand. | SB Acoustics |
| SKU No | WES_SB10PGC21-4_1 |
