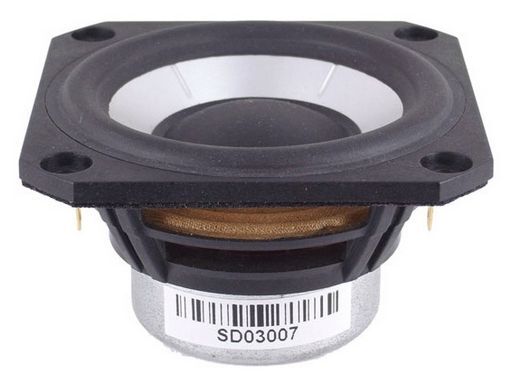

SB ACOUSTICS 2.5 FULL RANGE - WBAC
FULL RANGE ALUMINIUM CONE
SKU code: WES_SB65WBAC25-4_1
This is a SB ACOUSTICS 2.5 FULL RANGE - WBAC of brand SB Acoustics.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SB ACOUSTICS 2.5 FULL RANGE - WBAC |
| Notes | FULL RANGE ALUMINIUM CONE Geometrically furrowed aluminium cone for extended usable frequency range. Copper cap for increased high frequency output, reduced phase shift at higher frequencies and improved power handling capability. Low damping surround and non-conductive voice coil former to ensure dynamics and an open/transparent sound character with excellent detailing/resolution. Linear neodymium motor system for reduced distortion. Vented voice coil former for reduced compression.Geometrically furrowed aluminium cone for extended usable frequency range.Copper cap for increased high frequency output, reduced phase shift at higher frequencies and improved power handling capability.Low damping surround and non-conductive voice coil former to ensure dynamics and an open/transparent sound character with excellent detailing/resolution.Linear neodymium motor system for reduced distortion.Vented voice coil former for reduced compression. |
| Description | - |
| Type | Full Range |
| Size | 2.5' |
| Price Type | each |
| Power | 20Wms |
| Coil | 25.4mmØ |
| Width | 64mmØ |
| QTY | 1 |
| Impedance | 4Ω (Re 3.0Ω) |
| Depth | 33mm |
| Mag. | 0.02kg |
| Sens. | 83.5dB |
| Re | 3.0Ω |
| Qms | 6 |
| Qes | 0.77 |
| Qts | 0.68 |
| Vas | 0.43L |
| Sd | 20cm² |
| Cms | 0.77mm/N |
| Fs | 115Hz |
| Mms | 2.5g |
| Zn | 0.15mH |
| Le | 0.15mH |
| Rms | 0.3kg/s |
| Diam. | 64mmØ |
| Series | Alu-Cones |
| Manufacturer | SB Acoustics |
| Materials | Aluminium |
| Impedance (Ohm) | 4 ohm |
| Power (RMS) | 0-50 Watt |
| Inch | 2.5 |
| Bl | 2.9Tm |
| Xmax | 5.3mm |
| Flux (lm) | 1.02T |
| eBook | Link to eBook |
| Page | 20 |
| Prms | 20Wms |
| SKU No | WES_SB65WBAC25-4_1 |
