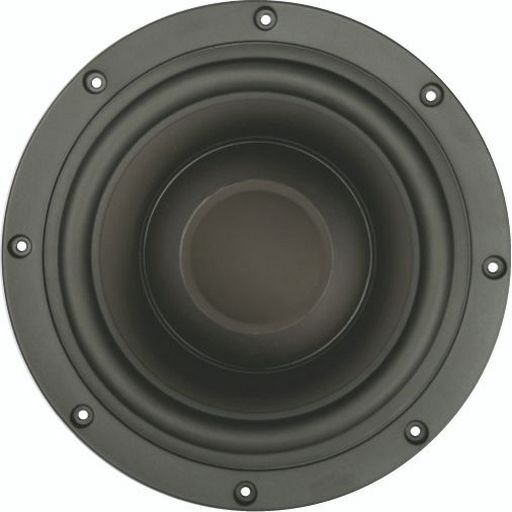

SB ACOUSTICS 10 SUB WOOFER - DBAC DUAL COIL
NARROW CABINET SOLUTION WITH NEODYMIUM MAGNET
SKU code: WES_SW26DBAC76-3-DV_3
This is a SB ACOUSTICS 10 SUB WOOFER - DBAC DUAL COIL of brand SB Acoustics.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SB ACOUSTICS 10 SUB WOOFER - DBAC DUAL COIL |
| Notes | NARROW CABINET SOLUTION WITH NEODYMIUM MAGNET Unique patented long through shallow design. Vented cast aluminium chassis for optimum strength and low compression. Dual rigid aluminium cone structure. Non-conducting fiber glass coil former for minimum damping. Shorting ring in motor system for reduced distortion. Copper voice coil for improved power handling. Dual voice coil. Long life insulated silver lead wires. Powerful neodymium motor system.Unique patented long through shallow designVented cast aluminium chassis for optimum strength and low compressionDual rigid aluminium cone structureNon-conducting fiber glass coil former for minimum dampingShorting ring in motor system for reduced distortionCopper voice coil for improved power handlingDual voice coilLong life insulated silver lead wiresPowerful neodymium motor system |
| Description | Dual Coil |
| Type | Subwoofer |
| Size | 10' |
| Price Type | each |
| Power | 300Wrms |
| Coil | 75.5mmØ |
| Width | 290mmØ |
| QTY | 1 |
| Impedance | 2x 3.0Ω (Re 2x 2.4 Ω) |
| Depth | 70.5mm |
| Mag. | 281g |
| Sens. | 88/82 dB |
| Re | 2x 2.4 Ω |
| Qms | 5.96 |
| Qes | 0.29 |
| Qts | 0.28 |
| Vas | 49.7L |
| Sd | 312cm² |
| Cms | 0.36mm/N |
| Fs | 19.5Hz |
| Mms | 185g |
| Rms | 3.8kg/s |
| Diam. | 254mmØ |
| Manufacturer | SB Acoustics |
| Materials | Aluminium |
| Impedance (Ohm) | 3+3 ohm |
| Power (RMS) | 200+ Watt |
| Inch | 10 |
| Bl | 9.7/19.4 Tm |
| Xmax | 24mm |
| Flux (lm) | 1T |
| eBook | Link to eBook |
| Prms | 300W |
| Page | 34 |
| Series | Alu-Cones |
| SKU No | WES_SW26DBAC76-3-DV_3 |
