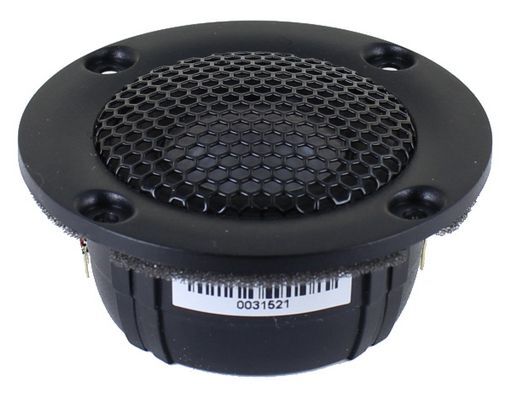

SB ACOUSTICS 1 TWEETER - BERYLLIUM DOME NEO BNC
NEODYMIUM MAGNET - 72MMØ FACIA
SKU code: WES_SB29BNC-C000-4_1
Most of our items are in stock and will be dispatched within 3 working days. In rare cases where an item needs to be sourced from our supplier, dispatch may take up to 7 working days.
AvailableThis is a SB ACOUSTICS 1 TWEETER - BERYLLIUM DOME NEO BNC of brand SB Acoustics.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SB ACOUSTICS 1 TWEETER - BERYLLIUM DOME NEO BNC |
| Notes | NEODYMIUM MAGNET - 72MMØ FACIA Beryllium is incredibly rigid (seven times more rigid than Titanium or Aluminium) and is considered one of the best materials in the world for tweeter domes. Extended frequency response past 20 kHz provides exceptional airiness and spatial quality with superb transients and micro-instrumentation. The result is a subtle, detailed, dynamic tweeter with fast response but without the typical harshness of metal domes that can cause listener fatigue. Low resonance, very high output, excellent power handling and protective grille, compact facia for high density facias.Beryllium is incredibly rigid (seven times more rigid than Titanium or Alumiinum) and is considered one of the best materials in the world for tweeter domes. Extended frequency response past 20 kHz provides exceptional airiness and spatial quality with superb transients and micro-instrumentation. The result is a subtle, detailed, dynamic tweeter with fast response but without the typical harshness of metal domes that can cause listener fatigue. With low resonance, very high output, excellent power handling and protective grille, this tweeter will work equally well for home hi-fi use or for high-end autosound applications.Beryllium dome for non-resonant high frequency extensionCopper cap on pole piece for reduced voice coil inductance and minimum phase shiftCCAW voice coil for low moving massInternal pressure equalization and flow resistor for non-resonant coupling of cavitiesLong life flexible lead wiresInherently shielded neodymium motor systemCompact designLow resonance frequency |
| Description | Dome |
| Impedance | 4Ω (Re 3.0Ω) |
| Fs | 950Hz |
| Sens. | 95dB |
| Power | 80Wrms |
| Qms | 1.36 |
| Qes | 1.4 |
| Qts | 0.69 |
| Coil | 29mmØ |
| Depth | 27mm |
| Diam. | 25mmØ |
| Impedance (Ohm) | 4 ohm |
| Inch | 1 |
| Le | 0.05mH |
| Mag. | 0.31kg |
| Manufacturer | SB Acoustics |
| Materials | Beryllium |
| Mms | 0.46g |
| Power (RMS) | 51-100 Watt |
| Price Type | each |
| QTY | 1 |
| Re | 3.0Ω |
| Sd | 9.6cm² |
| Series | Dome Tweeter |
| Size | 1' |
| Type | Tweeter |
| Width | 72mmØ |
| Zn | 0.05mH |
| Bl | 2.6Tm |
| Xmax | 0.5mm |
| Flux (lm) | 1.2T |
| eBook | Link to eBook |
| Page | 15 |
| SKU No | WES_SB29BNC-C000-4_1 |
