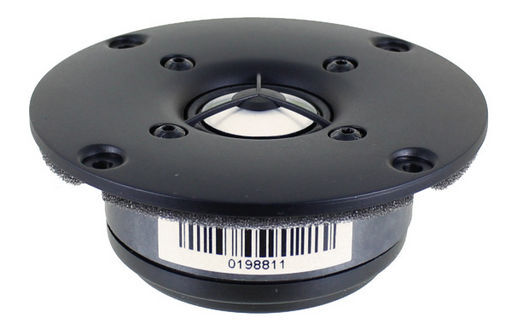

SB ACOUSTICS 1 TWEETER - AU CERAMIC CDC
CERAMIC COATED ALUMINIUM DOME
SKU code: WES_SB26CDC-C000-4_1
Most of our items are in stock and will be dispatched within 3 working days. In rare cases where an item needs to be sourced from our supplier, dispatch may take up to 7 working days.
AvailableThis is a SB ACOUSTICS 1 TWEETER - AU CERAMIC CDC of brand SB Acoustics.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SB ACOUSTICS 1 TWEETER - AU CERAMIC CDC |
| Notes | CERAMIC COATED ALUMINIUM DOME This tweeter combines the exceptional detail of a metal dome with the smoothness and non-fatiguing smooth characteristic of ceramic. Superb high-frequency extension. Copper cap for reduced voice coil inductance and minimum phase shift. Non-reflective rear chamber with optimized damping for improved dynamics. Flow optimized vented pole piece for optimum coupling to rear chamber. Saturation controlled motor system for low distortion. CCAW voice coil for low moving mass. Long life silver lead wires. Low resonance frequency.Aluminium/Ceramic DomePhase optimized diaphragm design for coherent high frequency radiationCopper cap for reduced voice coil inductance and minimum phase shiftSaturation controlled motor system for low distortionNon-reflective rear chamber with optimized damping for improved dynamicsFlow optimized vented pole piece for optimum coupling to rear chamberCCAW voice coil for low moving massLong life silver lead wiresLow resonance frequency |
| Description | Dome |
| Impedance | 4Ω (Re 3.2Ω) |
| Fs | 690Hz |
| Sens. | 89dB |
| Power | 120Wrms |
| Qms | 2.55 |
| Qes | 2 |
| Qts | 1.12 |
| Coil | 25.4mmØ |
| Diam. | 25mmØ |
| Impedance (Ohm) | 4 ohm |
| Inch | 1 |
| Le | 0.04mH |
| Mag. | 0.22kg |
| Manufacturer | SB Acoustics |
| Materials | Ceramic |
| Mms | 0.38g |
| Power (RMS) | 101-150 Watt |
| Price Type | each |
| QTY | 1 |
| Re | 3.2Ω |
| Sd | 6.2cm² |
| Series | Dome Tweeter |
| Size | 1' |
| Type | Tweeter |
| Width | 100mmØ |
| Zn | 0.04mH |
| Bl | 1.6Tm |
| Xmax | 1.2mm |
| Flux (lm) | 1.15T |
| eBook | Link to eBook |
| Page | 18 |
| SKU No | WES_SB26CDC-C000-4_1 |
