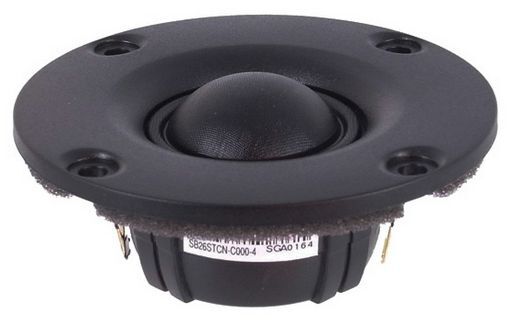

SB ACOUSTICS 1 DOME TWEETER - STCN
25MMØ TEXTILE - 72MMØ FACE PLATE - NEODYMIUM MAGNET
SKU code: WES_SB26STCN-C000-4_1
Most of our items are in stock and will be dispatched within 3 working days. In rare cases where an item needs to be sourced from our supplier, dispatch may take up to 7 working days.
AvailableThis is a SB ACOUSTICS 1 DOME TWEETER - STCN of brand SB Acoustics.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SB ACOUSTICS 1 DOME TWEETER - STCN |
| Notes | 25MMØ TEXTILE - 72MMØ FACE PLATE - NEODYMIUM MAGNET Copper cap on pole piece for reduced voice coil inductance and minimum phase shift. Fine weave soft fabric dome for smooth frequency response. Inherently shielded neodymium motor system. Internal pressure equalization and flow resistor for non-resonant coupling of cavities. Compact design. CCAW voice coil for low moving mass. Long life silver lead wires. Low resonance frequency.Copper cap on pole piece for reduced voice coil inductance and minimum phase shiftFine weave soft fabric dome for smooth frequency responseInherently shielded neodymium motor systemInternal pressure equalization and flow resistor for non-resonant coupling of cavitiesCompact designCCAW voice coil for low moving massLong life silver lead wiresLow resonance frequency |
| Coil | 25.4mmØ |
| Depth | 29.83mm |
| Diam. | 25mmØ |
| Fs | 960Hz |
| Impedance | 4Ω (Re 3.2Ω) |
| Impedance (Ohm) | 4 Ohms |
| Inch | 1 inch |
| Le | 0.04mH |
| Mag. | 0.021kg |
| Manufacturer | SB Acoustics |
| Materials | Textile |
| Mms | 0.3g |
| Power | 120Wrms |
| Power (RMS) | 101-150 Watt |
| Price Type | each |
| Pwr | 120 W |
| Qes | 1.77 |
| Qms | 1.6 |
| Qts | 0.84 |
| QTY | Single |
| Re | 3.2Ω |
| Sd | 6.2cm² |
| Sens. | 92.5dB |
| Series | Dome Tweeter |
| Size | 1' |
| Type | Tweeter |
| Width | 72mmØ |
| Zn | 0.04mH |
| Bl | 1.8Tm |
| Xmax | 1.2mm |
| Flux (lm) | 1.2T |
| eBook | Link to eBook |
| Page | 17 |
| SKU No | WES_SB26STCN-C000-4_1 |
