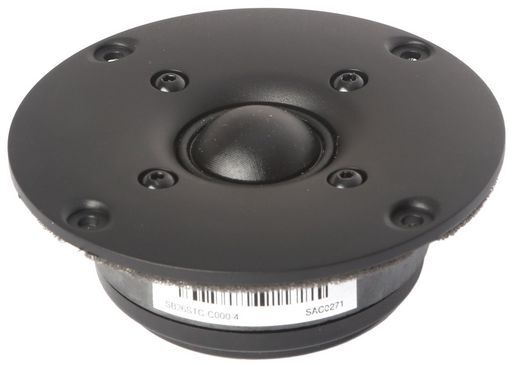

SB ACOUSTICS 1 DOME TWEETER - STC
25MMØ SOFT DOME TEXTILE - REAR CHAMBER
SKU code: WES_SB26STC-C000-4_1
Most of our items are in stock and will be dispatched within 3 working days. In rare cases where an item needs to be sourced from our supplier, dispatch may take up to 7 working days.
AvailableThis is a SB ACOUSTICS 1 DOME TWEETER - STC of brand SB Acoustics.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SB ACOUSTICS 1 DOME TWEETER - STC |
| Notes | 25MMØ SOFT DOME TEXTILE - REAR CHAMBER Copper cap for reduced voice coil inductance and minimum phase shift. Non-reflective rear chamber with optimized damping for improved dynamics. Flow optimized vented pole piece for optimum coupling to rear chamber. Fine weave soft fabric dome for smooth frequency response. Saturation controlled motor system for low distortion. CCAW voice coil for low moving mass. Long life silver lead wires. Low resonance frequency.Copper cap for reduced voice coil inductance and minimum phase shiftNon-reflective rear chamber with optimized damping for improved dynamicsFlow optimized vented pole piece for optimum coupling to rear chamberFine weave soft fabric dome for smooth frequency responseSaturation controlled motor system for low distortionCCAW voice coil for low moving massLong life silver lead wiresLow resonance frequency |
| Description | Dome |
| Type | Tweeter |
| Size | 1' |
| Price Type | each |
| Power | 120Wrms |
| Coil | 25.4mmØ |
| Width | 100mmØ |
| QTY | 1 |
| Impedance | 4Ω (Re 3.2Ω) |
| Depth | 39.7mm |
| Mag. | 0.22kg |
| Sens. | 91.5dB |
| Re | 3.2Ω |
| Qms | 3 |
| Qes | 1.78 |
| Qts | 1.12 |
| Sd | 6.2cm² |
| Fs | 750Hz |
| Mms | 0.3g |
| Zn | 0.04mH |
| Le | 0.04mH |
| Diam. | 25mmØ |
| Series | Dome Tweeter |
| Manufacturer | SB Acoustics |
| Materials | Textile |
| Impedance (Ohm) | 4 ohm |
| Power (RMS) | 101-150 Watt |
| Inch | 1 |
| Bl | 1.6Tm |
| Xmax | 1.2mm |
| Flux (lm) | 1.15T |
| eBook | Link to eBook |
| Prms | 120W |
| Page | 17 |
| SKU No | WES_SB26STC-C000-4_1 |
