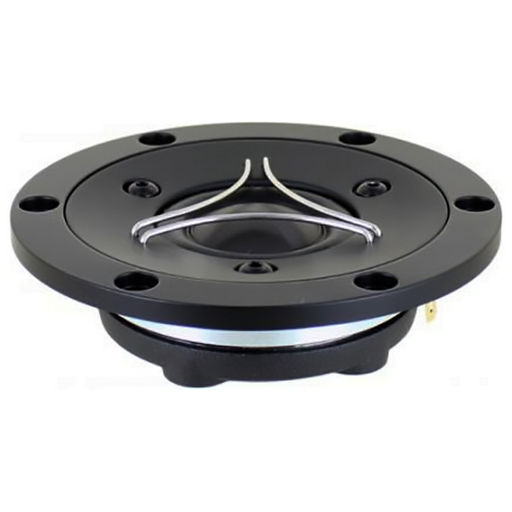

SATORI TeXtreme DOME TWEETER CARBON-FIBER
SATORI TeXtreme DOME TWEETER CARBON-FIBER
SKU code: WES_TW29TXN-B_1
This is a SATORI TeXtreme DOME TWEETER CARBON-FIBER of brand Satori.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SATORI TeXtreme DOME TWEETER CARBON-FIBER |
| Notes | New in the premium SB Acoustic Satori line is the 4 ohm version of their premium tweeter with Neodymium magnet and TeXtreme dome. TeXtreme is an advanced, super thin carbon fiber fabric that maximises the strength-to-weight ratio. This unit features smooth frequency response allowing for minimal effort in network design.Advanced TeXtreme® domeTwo part aluminium faceplate with integrated mechanical decouplingDual balanced compression chambers for improved dynamicsDual copper caps for absolute minimum voice coil inductance and minimum phase shiftHigh saturation neodymium motor system with T-shaped pole piece for lower distortionNon-reflective cast aluminium chamber with optimized damping for improved dynamicsShallow flow optimized magnet structure for optimum coupling to rear chamberCCAW voice coil for low moving massLong life silver lead wiresLow resonance frequency for extended range |
| Description | Satori 29mm Textreme dome, neodymium motor, black aluminium faceplate |
| Colour | Black |
| Coil | 29mmØ |
| Depth | 27.5mm |
| Fs | 650Hz |
| Impedance | 4Ω (Re 3.0Ω) |
| Impedance (Ohm) | 4 ohm |
| Le | 0.02mH |
| Mag. | 0.1kg |
| Manufacturer | Satori |
| Mms | 0.51g |
| Power | 80Wrms |
| Power (RMS) | 51-100 Watt |
| Price Type | each |
| Prms | 80W |
| Qes | 0.65 |
| Qms | 1.62 |
| Qts | 0.46 |
| QTY | 1 |
| Re | 3.0Ω |
| Sd | 9.6cm² |
| Sens. | 96dB |
| Series | Satori |
| Type | Dome Tweeter |
| Width | 103.8mmØ |
| Zn | 0.02mH |
| Bl | 3.1Tm |
| Xmax | 0.5mm |
| Flux (lm) | 1.5T |
| Page | 9 |
| eBook | Link to eBook |
| SKU No | WES_TW29TXN-B_1 |
