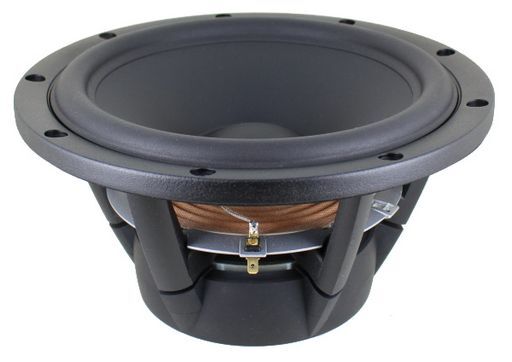

SATORI 9.5 WOOFER
SB ACOUSTICS
SKU code: WES_WO24P-8_1
Most of our items are in stock and will be dispatched within 3 working days. In rare cases where an item needs to be sourced from our supplier, dispatch may take up to 7 working days.
AvailableThis is a SATORI 9.5 WOOFER of brand SB Acoustics.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
TECHNICAL SHEET | |
---|---|
Title | SATORI 9.5 WOOFER |
Notes | SB ACOUSTICS Hard paper cone for improved piston operation (made in-house). Large optimized motor system with under-cut pole piece and dual shorting rings. Vented aerodynamic cast aluminium chassis for optimum strength and low compression. Soft low damping rubber surround for optimum transient response. Linear symmetric suspension design for improved dynamic performance. Non-conducting fibre glass voice coil former for minimum damping. Long life silver lead wires attached 180° apart for improved stability. Vented pole piece for reduced compression. High piston to chassis diameter ratio. Gasket and bolt hole protrusions for reduced coupling to speaker cabinet.Hard paper cone for improved piston operation (made in-house)Large optimized motor system with under-cut pole piece and dual shorting ringsVented aerodynamic cast aluminium chassis for optimum strength and low compressionSoft low damping rubber surround for optimum transient responseLinear symmetric suspension design for improved dynamic performanceNon-conducting fibre glass voice coil former for minimum dampingLong life silver lead wires attached 180° apart for improved stabilityVented pole piece for reduced compressionHigh piston to chassis diameter ratioGasket and bolt hole protrusions for reduced coupling to speaker cabinet |
Description | 9.5' Satori woofer |
Type | Woofer |
Size | 9.5' |
Price Type | each |
Power | 90Wrms |
Coil | 49.5mmØ |
Width | 242mmØ |
QTY | 1 |
Impedance | 8Ω (Re 5.8Ω) |
Depth | 116.4mm |
Mag. | 1.36kg |
Sens. | 88dB |
Re | 5.8Ω |
Qms | 5.7 |
Qes | 0.41 |
Qts | 0.38 |
Vas | 87.5L |
Sd | 255cm² |
Cms | 0.95mm/N |
Fs | 24.5Hz |
Mms | 44.5g |
Zn | 0.56mH |
Le | 0.56mH |
Rms | 1.2kg/s |
Diam. | 241mmØ |
Series | Satori |
Manufacturer | SB Acoustics |
Materials | Papyrus |
Impedance (Ohm) | 8 ohm |
Power (RMS) | 51-100 Watt |
Inch | 9.5 |
Colour | Black Cone |
Bl | 9.9Tm |
Xmax | 17mm |
Flux (lm) | 1.1T |
eBook | Link to eBook |
Page | 14 |
Prms | 90W |
Sold As | Single |
SKU No | WES_WO24P-8_1 |
