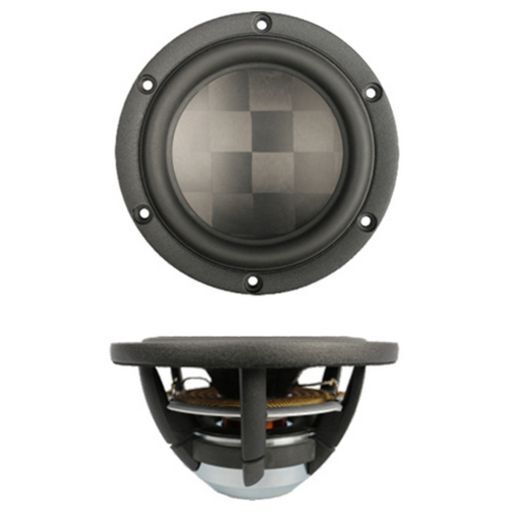

SATORI 5 MID-WOOFER - TEXTREME
SATORI 5 MID-WOOFER - TEXTREME
SKU code: WES_MW13TX-8_1
This is a SATORI 5 MID-WOOFER - TEXTREME of brand Satori.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SATORI 5 MID-WOOFER - TEXTREME |
| Notes | Premium 5″ woofer with Neodymium magnet, aerodynamic chassis and woven TeXtreme cone. TeXtreme is an advanced, super thin carbon fibre fabric that maximizes the strength-to-weight ratio. The spread tow technology offers several advantages over regular Spread tow fabrics, such as very low crimp, lower weight and improved cosmetics (cones are very flat and smooth). The laminated thin-ply TeXtreme® material has an excellent stiffness-to-weight ratio (though surpassed by beryllium, it is also significantly less expensive). Available in 4 ohm and 8 ohm models.Advanced TeXtreme® coneVented aerodynamic cast aluminium chassisSoft low damping rubber surroundAdvanced BIMAX spiderPowerful optimized low distortion neodymium motor systemExtended copper sleeve on pole pieceNon-conducting fiberglass voice coil formerVented pole piece and voice coilLight weight CCAW voice coilLong life silver lead wires |
| Description | 30.5mm Voice coil, Textreme cone, rubber surround, neodymium motor, aluminium chassis |
| Coil | 30.5mmØ |
| Depth | 63.5mm |
| Fs | 40Hz |
| Impedance | 8Ω (Re 6.0Ω) |
| Impedance (Ohm) | 8 ohm |
| Inch | 5' |
| Le | 0.18mH |
| Mag. | 0.1kg |
| Manufacturer | Satori |
| Mms | 7.3g |
| Power | 40Wrms |
| Power (RMS) | 0-50 Watt |
| Price Type | each |
| Prms | 40W |
| Qes | 0.34 |
| Qms | 4.99 |
| Qts | 0.32 |
| QTY | 1 |
| Re | 6.0Ω |
| Sd | 70cm² |
| Sens. | 87dB |
| Series | Satori |
| Size | 5' |
| Type | Woofer |
| Vas | 14.8L |
| Width | 132mmØ |
| Zn | 0.18mH |
| eBook | Link to eBook |
| Rms | 0.4kg/s |
| Flux (lm) | 1.08T |
| Xmax | 10mm |
| Page | 11 |
| Cms | 2.19mm/N |
| Bl | 5.7Tm |
| SKU No | WES_MW13TX-8_1 |
