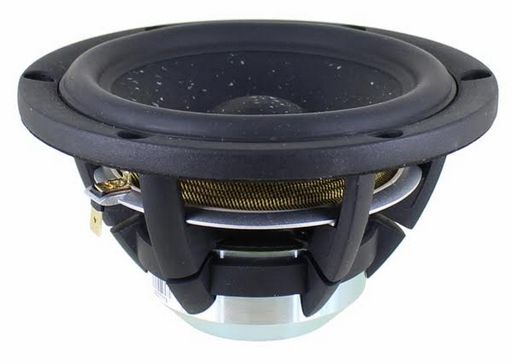

This is a SATORI 5 MID-RANGE - PAPYRUS of brand SB Acoustics.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title SATORI 5 MID-RANGE - PAPYRUS
Notes SB ACOUSTICS Vented aerodynamic cast aluminium chassis for optimum strength and low compression. Proprietary cone material with EGYPTIAN PAPYRUS™ fibres made in-house. Soft low damping rubber surround for optimum transient response. Advanced BIMAX spider for improved linearity. Powerful optimized low distortion neodymium motor system. Non-conducting fibre glass voice coil former for minimum damping. Extended copper sleeve on pole piece for low inductance and reduced distortion. CCAW voice coil for reduced moving mass. Long life silver lead wires attached 180° apart for improved stability. Vented pole piece and coil former for reduced compression. High piston to chassis diameter ratio. Gasket and bolt hole protrusions for reduced coupling to speaker cabinet.Vented aerodynamic cast aluminium chassis for optimum strength and low compression.Proprietary cone material with EGYPTIAN PAPYRUS™ fibres made in-house. Soft low damping rubber surround for optimum transient response.Advanced BIMAX spider for improved linearity.Powerful optimized low distortion neodymium motor system.Non-conducting fibre glass voice coil former for minimum damping.Extended copper sleeve on pole piece for low inductance and reduced distortion.CCAW voice coil for reduced moving mass.Long life silver lead wires attached 180° apart for improved stability.Vented pole piece and coil former for reduced compression.High piston to chassis diameter ratio.Gasket and bolt hole protrusions for reduced coupling to speaker cabinet.
Description5' Satori midrange
TypeMidrange
Size5'
Price Typeeach
Power30Wrms
Coil30.5mmØ
Width132mmØ
QTY1
Impedance4Ω (Re 3.0Ω)
Depth63.5mm
Mag.0.1kg
Sens.91dB
Re3.3Ω
Qms2.8
Qes0.25
Qts0.23
Vas19.4L
Sd70cm²
Cms2.79mm/N
Fs41Hz
Mms5.4g
Zn0.11mH
Le0.11mH
Rms0.5kg/s
Diam.127mmØ
SeriesSatori
ManufacturerSB Acoustics
MaterialsPapyrus
Impedance (Ohm)4 ohm
Power (RMS)0-50 Watt
Inch5
ColourBlack Cone
Bl4.3Tm
Xmax6mm
Flux (lm)1.08T
eBookLink to eBook
Page11
Prms30W
Sold AsSingle
SKU NoWES_MR13P-4_1
