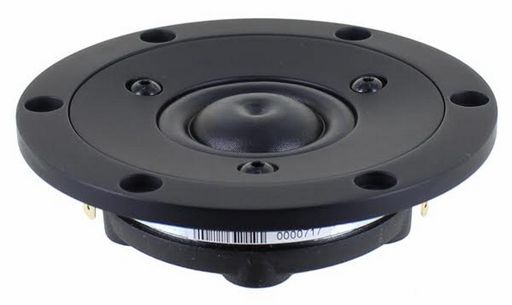

SATORI 1¼ RING TWEETER NEO
29MMØ VOICE COIL NEODYMIUM
SKU code: WES_TW29RN-B_1
This is a SATORI 1¼ RING TWEETER NEO of brand SB Acoustics.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SATORI 1¼ RING TWEETER NEO |
| Notes | 29MMØ VOICE COIL NEODYMIUM Non-resonant diaphragm design for minimum high frequency break-up. Two part aluminium black faceplate with integrated mechanical decoupling. Dual balanced compression chambers for improved dynamics. Dual copper caps for absolute minimum voice coil inductance and minimum phase shift. High saturation neodymium motor system with T-shaped pole piece for lower distortion. Non-reflective cast aluminium chamber with optimized damping for improved dynamics. Shallow flow optimized magnet structure for optimum coupling to rear chamber. CCAW voice coil for low moving mass. Long life silver lead wires. Low resonance frequency for extended range.Non-resonant diaphragm design for minimum high frequency break-upTwo part aluminium black faceplate with integrated mechanical decouplingDual balanced compression chambers for improved dynamicsDual copper caps for absolute minimum voice coil inductance and minimum phase shiftHigh saturation neodymium motor system with T-shaped pole piece for lower distortionNon-reflective cast aluminium chamber with optimized damping for improved dynamicsShallow flow optimized magnet structure for optimum coupling to rear chamberCCAW voice coil for low moving massLong life silver lead wiresLow resonance frequency for extended range |
| Description | Satori Tweeter Ring Dome Neo Black |
| Type | Tweeter |
| Size | 1' |
| Price Type | each |
| Power | 80Wrms |
| Coil | 29mmØ |
| Width | 103.8mmØ |
| QTY | 1 |
| Impedance | 4Ω (Re 3.0Ω) |
| Depth | 21.7mm |
| Mag. | 0.1kg |
| Sens. | 96dB |
| Re | 3.0Ω |
| Qms | 2.1 |
| Qes | 0.65 |
| Qts | 0.49 |
| Sd | 9.6cm² |
| Fs | 700Hz |
| Mms | 0.44g |
| Zn | 0.02mH |
| Le | 0.02mH |
| Diam. | 25mmØ |
| Series | Satori |
| Manufacturer | SB Acoustics |
| Materials | Ring Neo |
| Impedance (Ohm) | 4 ohm |
| Power (RMS) | 51-100 Watt |
| Inch | 1 |
| Colour | Black |
| Bl | 3.1Tm |
| Xmax | 0.5mm |
| Flux (lm) | 1.5T |
| eBook | Link to eBook |
| Page | 10 |
| Prms | 80W |
| Sold As | Single |
| SKU No | WES_TW29RN-B_1 |
