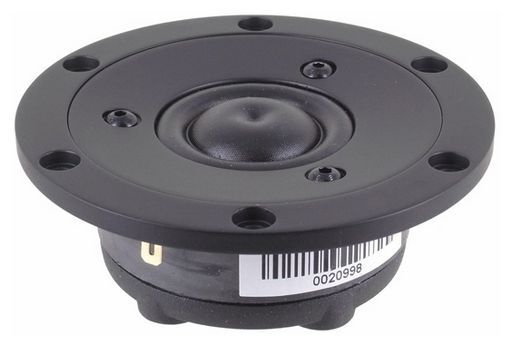

SATORI 1¼ RING TWEETER
29MMØ VOICE COIL BLACK
SKU code: WES_TW29R-B_1
Most of our items are in stock and will be dispatched within 3 working days. In rare cases where an item needs to be sourced from our supplier, dispatch may take up to 7 working days.
AvailableThis is a SATORI 1¼ RING TWEETER of brand SB Acoustics.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SATORI 1¼ RING TWEETER |
| Notes | 29MMØ VOICE COIL BLACK Non-resonant diaphragm design for minimum high frequency break-up. Two part aluminium black faceplate with integrated mechanical decoupling. Dual balanced compression chambers for improved dynamics. Dual copper caps for absolute minimum voice coil inductance and minimum phase shift. Saturation controlled motor system with T-shaped pole piece for lower distortion. Non-reflective cast aluminium chamber with optimized damping for improved dynamics. Flow optimized vented pole piece for optimum coupling to rear chamber. CCAW voice coil for low moving mass. Long life silver lead wires. Low resonance frequency for extended range.Non-resonant diaphragm design for minimum high frequency break-upTwo part aluminium black faceplate with integrated mechanical decouplingDual balanced compression chambers for improved dynamicsDual copper caps for absolute minimum voice coil inductance and minimum phase shiftSaturation controlled motor system with T-shaped pole piece for lower distortionNon-reflective cast aluminium chamber with optimized damping for improved dynamicsFlow optimized vented pole piece for optimum coupling to rear chamberCCAW voice coil for low moving massLong life silver lead wiresLow resonance frequency for extended range |
| Description | Satori Tweeter Ring Dome Black |
| Type | Tweeter |
| Size | 1' |
| Price Type | each |
| Power | 80Wrms |
| Coil | 29mmØ |
| Width | 103.8mmØ |
| QTY | 1 |
| Impedance | 4Ω (Re 3.0Ω) |
| Depth | 32.3mm |
| Mag. | 0.22kg |
| Sens. | 92dB |
| Re | 3.0Ω |
| Qms | 2 |
| Qes | 1.24 |
| Qts | 0.77 |
| Sd | 9.6cm² |
| Fs | 600Hz |
| Mms | 0.44g |
| Zn | 0.02mH |
| Le | 0.02mH |
| Diam. | 25mmØ |
| Series | Satori |
| Manufacturer | SB Acoustics |
| Materials | Ring |
| Impedance (Ohm) | 4 ohm |
| Power (RMS) | 51-100 Watt |
| Inch | 1 |
| Colour | Black |
| Page | 10 |
| Prms | 80W |
| Bl | 2Tm |
| Xmax | 0.5mm |
| Flux (lm) | 1T |
| eBook | Link to eBook |
| Sold As | Single |
| SKU No | WES_TW29R-B_1 |
