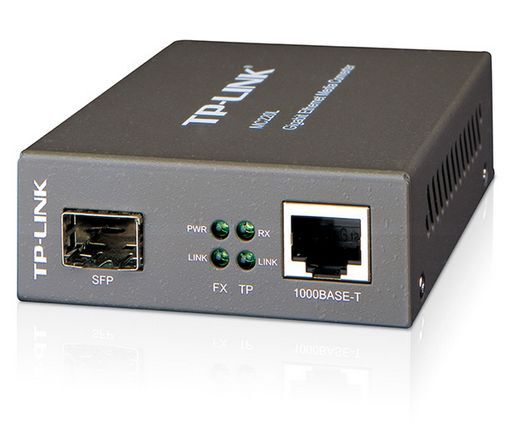

RJ45 TO SFP MEDIA CONVERTER TP-LINK
EXTENDS FIBRE DISTANCE FOR MULTI-MODE FIBRE OR SINGLE-MO
SKU code: WES_MC220L_1
This is a RJ45 TO SFP MEDIA CONVERTER TP-LINK of brand TP-Link.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | RJ45 TO SFP MEDIA CONVERTER TP-LINK |
| Notes | EXTENDS FIBRE DISTANCE FOR MULTI-MODE FIBRE OR SINGLE-MODE FIBRE The MC220L is a media converter designed to convert 1000BASE-SX/LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX/LX/LH standards, the MC220L is designed for use with multi-mode/single-mode fiber cable utilizing the LC-Type connector. It works at 850nm on both transmitting and receiving data when adopting multi-mode fiber and 1310nm on both transmitting and receiving data when adopting single-mode. Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´´system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC220L will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers and 10 kilometers when utilizing single-mode fiber.Works at 1000Mbps in Full-Duplex mode for both TX port and FX portSupports auto MDI/MDIX for TX portProvides switch configuration of Force /Auto transfer mode for FX portFX port support hot-swappableExtends fiber distance up to 0.55km for multi-mode fiber and 10km for single-mode fiberEasy-to-view LED indicators provide status to monitor network activity easilyExternal power supply |
| Description | 1000Mbps RJ45 to 1000Mbps SFP slot supporting MiniGBIC modules, switching power adapter, chassis mountable |
| OEM | MC220L |
| Manufacturer | TP-Link |
| SKU No | WES_MC220L_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | |
| SKU | WES_MC220L_1 |
| Brand | TP-Link |
