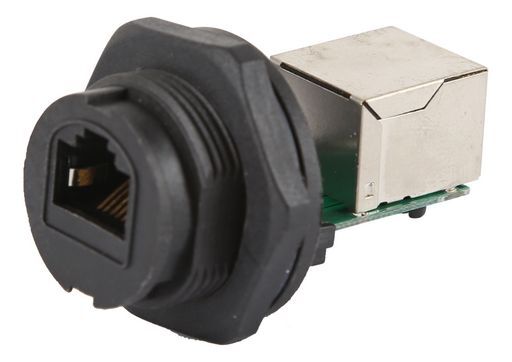

This is a RJ45 JACK 180° BAYONET of brand Chogori.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title RJ45 JACK 180° BAYONET
Notes RJ45 IN AND OUT Panel Mount 20mm hole with front mounting screw. Compatible with the Bayonet plug. Rear is a RJ45 Jack. All pins gold plated. Weather proof to IP67 standards. Quality PA66 plastic materials. Up to CAT6 compatible.Panel Front Mount
DescriptionRJ45 panel mount with Jack 180° (lock bayonet)
Cable24AWG
Contact8
Description 1Suits 33000000-06
Description 2Description
Suits33000000-06
ThreadBayonet Wide
Mechanical Life500 mating cycles
Wire Gauge0.2mm²
Panel ThicknessMax 4.0mm
IPIP67
Operating Temperature-45 ~ +85
Chogori Cat Page109
Brand.Chogori
ManufacturerChogori
BackRJ45 Socket
TypeSocket Bayonet
SKU NoWES_33000000-11_3
