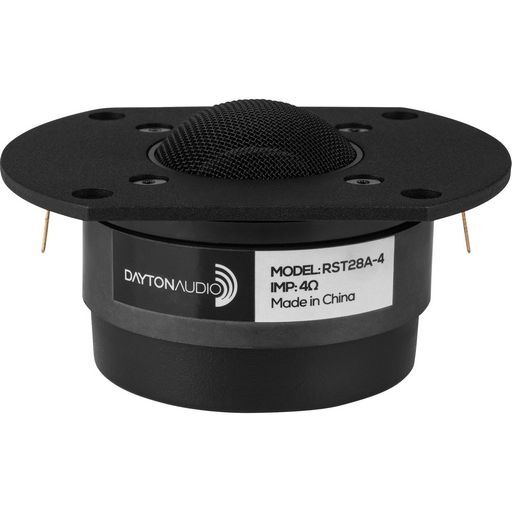

REFERENCE SERIES ALUMINIUM DOME TWEETER TRUNCATED
Truncated Faceplate
SKU code: WES_RST28A-4T_1
Most of our items are in stock and will be dispatched within 3 working days. In rare cases where an item needs to be sourced from our supplier, dispatch may take up to 7 working days.
AvailableThis is a REFERENCE SERIES ALUMINIUM DOME TWEETER TRUNCATED of brand Dayton Audio.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | REFERENCE SERIES ALUMINIUM DOME TWEETER TRUNCATED |
| Notes | Truncated Faceplate For applications like line arrays or compact mini-monitors that demand a smaller faceplate, a truncated faceplate is now available. The Dayton Audio RST28A-4 aluminum dome Reference Series tweeter offers exceptional efficiency from 1,500 Hz to 20,000 Hz with smooth and well controlled frequency response. This tweeters unique black anodized 1-1/8 aluminum diaphragm and state-of-the-art motor system not only match the look and features of Dayton Audios Reference Series woofers and midranges, but also the clean, detailed, and uncolored sound you have come to expect. A specialized damped rear chamber, well-designed phase bridge, rigid mesh grill, and several distortion-reducing paths in the motor are just a few of the features that allow these tweeters to outperform some the most expensive audiophile high-frequency transducers.1-1/8 aluminum diaphragm offers remarkable clarity without the typical harshness of metal domesExceptional efficiency at 92.5 ±3dB from 1.5 kHz to 19 kHz and a smooth frequency responseWell-designed phase bridge to balance the response in the upper octaveTuned rear chamber and high-quality Ferrofluid for excellent low-end responseLow-distortion motor system achieves a rare level of transparencyMatches the performance of even the most expensive audiophile high-frequency transducersFor applications like line arrays or compact mini-monitors that demand a smaller faceplate |
| Description | 1-1/8' Reference Series Aluminum Dome Tweeter 4 Ohm Truncated |
| Manufacturer | Dayton Audio |
| Le | 0.03mH |
| Qts | 0.93 |
| QTY | 1 |
| Inch | 1.125 |
| Size | 1.125' |
| Qes | 1.65 |
| Diam. | 105mmØ |
| Frequency | 1500Hz - 20KHz |
| Qms | 2.15 |
| VC | 28.5mmØ |
| Re | 3.0Ω |
| Impedance (Ohm) | 4 ohm |
| Depth | 45mm |
| Impedance | 4Ω (Re 3Ω) |
| Power (RMS) | 51-100 Watt |
| Sd | 6.6cm² |
| Hole | 73mmØ |
| Fs | 775Hz |
| Prms | 80W |
| Power | 80Wrms |
| Sens. | 92.5dB |
| Colour | Black |
| Price Type | each |
| Series | Reference Series |
| Type | Tweeter |
| SKU No | WES_RST28A-4T_1 |
