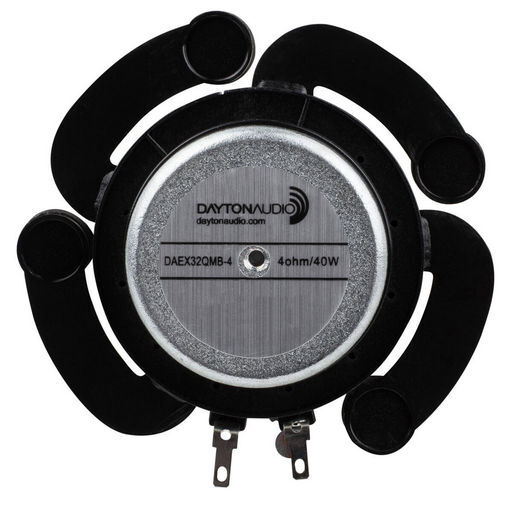

QUAD FEET MEGA BASS 32MM EXCITER 40W
DAYTON AUDIO
SKU code: WES_DAEX32QMB-4_1
This is a QUAD FEET MEGA BASS 32MM EXCITER 40W of brand Dayton Audio.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | QUAD FEET MEGA BASS 32MM EXCITER 40W |
| Notes | DAYTON AUDIO Dayton Audio's DAEX32QMB-4 quad arm exciter is built with four arms that extend out from the main exciter body, which allows this exciter to transfer sound to a much larger surface for lower frequency response extension (more bass). Also, the arms help to support the magnet/voice coil improving linearity when mounted on vertical surfaces. A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. The 1.25 voice coil allows for more input power, creating rich, dynamic sound. To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied to the main body, and the four arms ... just peel and stickLarge 32 mm voice coil improves power handling to 40 watts RMSRare-earth neodymium motor and a proprietary vented voice coilFour arms provide extra support improving linearityTurns any flat, rigid surface into a speaker |
| Description | Quad Feet Mega Bass 32mm Exciter 40W 4 Ohm |
| Coil | 32mmØ |
| Depth | 20mm |
| Diam. | 80mmØ |
| Dimensions | 22x80mmØ |
| Fs | 480Hz |
| Height | 22mm |
| Impedance | 4Ω |
| Impedance (Ohm) | 4 ohm |
| Inch | 3 |
| Le | 0.23mH |
| Manufacturer | Dayton Audio |
| Power | 40Wrms |
| Power (RMS) | 0-50 Watt |
| Price Type | each |
| Prms | 40W |
| QTY | 1 |
| Re | 3.7Ω |
| Size | 3' |
| Type | Exciter |
| Width | 80mmØ |
| Zn | 4Ω |
| SKU No | WES_DAEX32QMB-4_1 |
