This is a POLYSWITCH - AS SPEAKER PROTECTORS of brand Universal.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title POLYSWITCH - AS SPEAKER PROTECTORS

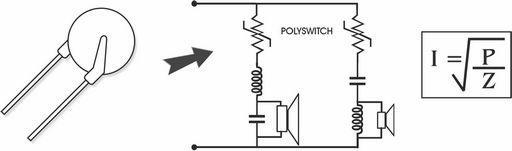

Notes The PolySwitch circuit protector is a positive temperature coefficient resistor that undergoes a large, quick increase in resistance when the over-current heats it above a specific point, going near open circuit! When the temperature reduces, the PolySwitch resets to a near short circuit, unharmed, to resume normal operation. No manual resetting is required. This makes them an ideal economical protector for building inside speakers. For the best performance it is recommended that each driver be individually protected.INSTRUCTIONS It is not possible to simply recommended a polyswitch for a speaker wattage. Speaker power ratings, Impedances (and therefore Trip Current) supplied with speakers are generalized and are very difficult to determine with any real accuracy. This is standard for most types of speaker protection due to frequency and the dynamics of music! The only recommendation we can find is to pick a conservative value polyswitch and that if it repeatedly false triggers, select the next value up, with caution. To convert Power rating into Trip Current, use Ohms law: Determine the maximum power ratings for each driver P = 1.414 x Prms = 1.414 x Pnom = ½Ppmpo = ½Pp-p = Pmax Divide this value by the Impedance (R or Z), this gives you the trigger current (I trip). Select the RXE Code that has a lower trip current than the one you calculated. Double check your findings.
I hold2.50
I trip5.00
Cold Ω0.05
SKU NoWES_RXE250_1



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN
SKU WES_RXE250_1
Brand Universal
