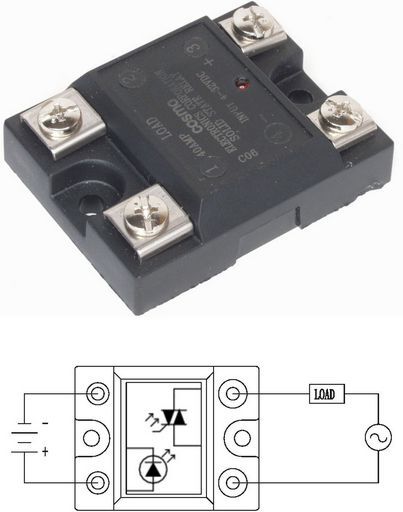

This is a PHOTO-OPTOCOUPLER 40A 250VAC of brand Universal.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title PHOTO-OPTOCOUPLER 40A 250VAC
Notes NORMALLY OPEN TYPE - OPTICALLY ISOLATED Photocoupler isolation for direct connection to IC logic circuits such as DTL, TTL, CMOS etc.  Zero voltage turn-on, Zero current turn-off  Faster switching response  High surge current handling capability  Requires minimum actuation power  Easy to monitor red LED operation indicator  No noise due to load current switching at near zero point  Input Control Voltage Range: 4 ~ 32V DC  Turn-on Voltage: 4V DC  Rev. Voltage Protection: 32V DC  Current Rating: 40 Amps  Surge Current Rating: 425 Amp 16ms  Size: 58 x 21 x 45.2mm (WHD).
TypeSPST
Size45x58x16mm
Coil3-32Vdc 12mA
V out250Vrms AC
Iout40Arms AC
Amax40Arms
Vmax250Vrms
Riso10GO
Is12-5mA
Vs4-32Vdc
Viso4000Vac
SKU NoWES_KSD240AC8_2



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN
SKU WES_KSD240AC8_2
Brand Universal
