PHONO MM RIAA PREAMPLIFIER
WITH AUXILIARY SWITCH AND VOLUME CONTROL
SKU code: WES_PA006_4

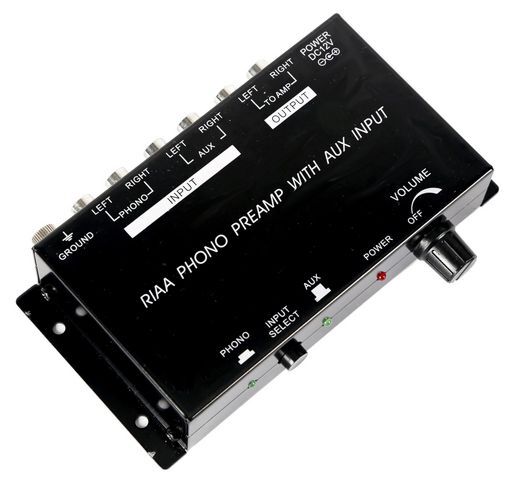

This is a PHONO MM RIAA PREAMPLIFIER of brand Daichi.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | PHONO MM RIAA PREAMPLIFIER |
| Notes | WITH AUXILIARY SWITCH AND VOLUME CONTROL Used to drive the turntable directly into a mixer, home theatre amplifier or a computer sound card. Precise RIAA balance and 80dB S/N ratio. Switch auxiliary input, eliminating the need to connect and disconnect the source signal as well as the sharing connection of the product. Metal box 145x95x32mm. Includes 12V Powerpack.High quality RIAA phonograph preamplifier, for use with dynamic magnetic type jukebox. Accurate and stable integrated circuit design. Auxilary is buffered with 6dB gain.Gold-plated head input and output connection RCA port, reliable performance. Stylish, sturdy metal case to increase resistance of electrical noise. Volume can be adjusted to balance with signals from other sources. Distortion ratio: 0.06% (max). The frequency response is: + / -0.5dB, 20Hz - 20kHz. Phonograph input: 47K ohm - 200pF nominal. Line input: 10K ohm. 6dB gain.Output impedance: 100 ohms. Channel separation: 50dB. Phono sensitivity: 3.3MV. Output: 5Vpp max. SNR: 70dB. Power supply: DC 12V 1A. |
| Size | 145x95x32mm |
| Voltage | 12Vdc |
| Input | 3.3mV 47K 200pF |
| Out | 5Vpp max. |
| Gain | AUX 6dB |
| Freq. | 20Hz - 20KHz |
| Manufacturer | Daichi |
| SKU No | WES_PA006_4 |
