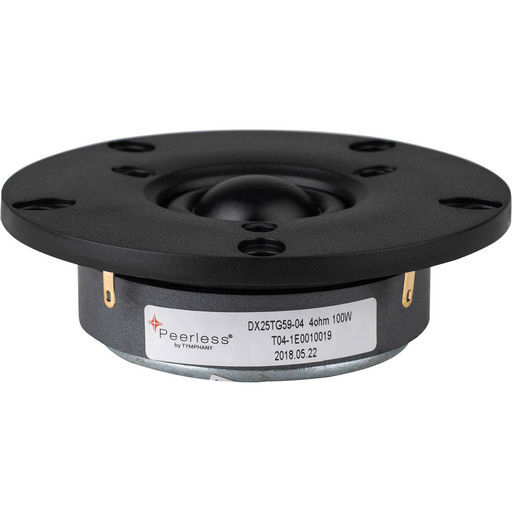

PEERLESS BY TYMPHANY 1 FARBIC DOME TWEETER
PEERLESS BY TYMPHANY 1 FARBIC DOME TWEETER
SKU code: WES_DX25TG59-04_1
This is a PEERLESS BY TYMPHANY 1 FARBIC DOME TWEETER of brand Peerless.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
TECHNICAL SHEET | |
---|---|
Title | PEERLESS BY TYMPHANY 1 FARBIC DOME TWEETER |
Notes | The DX25TG59-04 tweeter's lightweight diaphragm with large surround structure gives extended high frequency response and superb off-axis characteristics, while the tuned rear chamber and extra-strong 5-hole faceplate yield excellent mechanical damping. The DX tweeter provides a great blend of detail, efficiency, and extended response.Extra-strong 5-hole faceplate1 treated soft domeTuned chamber lowers resonanceLarge surround increases range |
Cms | 170.2um/N |
Coil | 25.4 mmØ |
Depth | 26mm |
Diam. | 104mmØ |
Fs | 640.02Hz |
Impedance | 4Ω (Re 2.93Ω) |
Impedance (Ohm) | 4 Ohms |
Inch | 1 inch |
Le | 0.02mH |
Manufacturer | Peerless |
Materials | ASV |
Mms | 0.4g |
Power | 100Wrms |
Power (RMS) | 51-100 Watt |
Price Type | each |
Qes | 0.74 |
Qms | 2.46 |
Qts | 0.57 |
QTY | Single |
Re | 2.93Ω |
Rms | - |
Sd | 8.2cm² |
Sens. | 89.8dB |
Series | Dome Tweeter |
Size | 1' |
Type | Tweeter |
Vas | 0.02L |
Zn | 4Ω |
Width | 104mmØ |
SKU No | WES_DX25TG59-04_1 |
