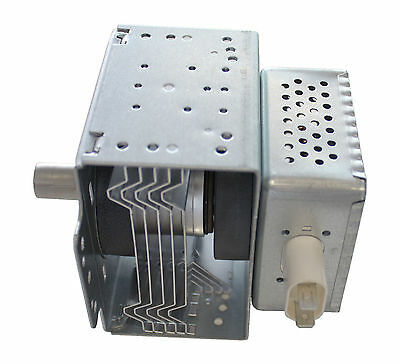

PANASONIC INVERTER MICROWAVE OVEN MAGNATRON NN-SD351M, NN-SD361M, NN-SD381S,
Brand: Panasonic
SKU code: EBY_263768667048
This is a nn-gd392s,nn-gt370 for Panasonic. It is suitable for Panasonic - Microwaves.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | PANASONIC INVERTER MICROWAVE OVEN MAGNATRON NN-SD351M, NN-SD361M, NN-SD381S, |
| Notes | Panasonic Inverter Type Microwave oven item No. 2M236-M36 Suitable Models: NN-SD351M, NN-SD361M, NN-SD381S, NN-SD372S, NN-SD382S, NN-GD371M, NN-GD391S, NN-GD392S,NN-GT370 Description: Inverter type magnetron Output power: 1000W Frequency(with matched load): 2455Mhz Filament voltage: 3.3 Vac Filament current: 10A Peak anode voltage: 4.4KV Panasonic part number: 2M236-M1 this is also equivalent to the 2M236-M1G magnetron This magnetron is fitted to some Panasonic inverter type microwaves. Some microwaves such as Bosch and Siemens also use this magnetron as they are rebranded Panasonic ovens. These ovens are upmarket models and are normally well worth repairing. The 2M236-M1G is the offline version of the 2M236 magnetron, ie the airflow goes against the direction of the mounting brackets. This magnetron is used in some convection oven models. The offline construction allows horizontal mounting of the magnetron which is required in some models. Please note this item is not suitable for replacement of the 2M236-M42. Please see our other listings in the cross selling link below for this item. We also have available the 2M261-M32 which is a version fitted to earlier inverter models. An inverter microwave oven is one without a high voltage transformer You will know you have one as it is not extremely heavy at one end. This type of microwave uses a high power DC converter, called an inverter, to produce the high voltage and filament voltage required by the magnetron. Failure of this magnetron is common. An instruction sheet with basic guidelines on fitting will be provided but please do not purchase this item unless you are confident about fitting it. We only accept returns if the magnetron supplied is defective which is extremely unlikely. Please see our other listings for other microwave parts for these and other models. Parts such as: Oven lamps The Inverter assembly In some cases you may require a replacement Air Guide A as this can melt if the magnetron overheats. This part is also to be found in our microwave parts section. It is strongly recommended that you replace the oven lamp as failure of the lamp is quite common. We find that when the original type of oven lamp fails damage can be caused to the control panel DU pcb assembly. The reason for this is that as the lamp fails it can go momentarily short circuit and the pcb tracks get blown open before the main fuse fails. It is worthwhile considering a new lamp as it will prevent this from happening. New lamps have fuses fitted inside them. Note: Microwave ovens should only be repaired by qualified technicians with a knowledge of microwave ovens. Voltages present inside a microwave oven are extremely high and dangerous, and can be present long after the appliance is switched off and disconnected from the mains supply |
| Suitable Brand | Panasonic |
| Suitable Applicance Class | Microwave |
| Replacement Item Type | NN-GD392S,NN-GT370 |
| Suits to | 2M236-M36 NN-SD382S, NN-GD371M, NN-GD391S, NN-GD3 |
| Brand | PANASONIC |
| Model | NN-SD351M, NN-SD361M, NN-SD381S, NN-SD372S, NN-SD3 |
| MPN | 2M236-M36 NN-SD382S, NN-GD371M, NN-GD391S, NN-GD3 |
| Type | NN-GD392S,NN-GT370 |
| UPC | Does not apply |
| SKU No | EBY_263768667048 |
