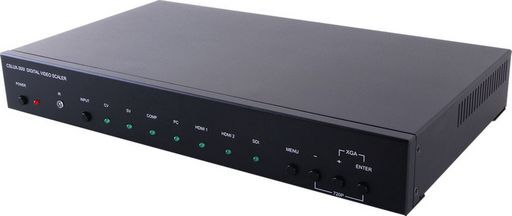

This is a .MULTI-FORMAT TO HDMI/VGA SCALER WITH 3G-SDI LOOP OUTPUT of brand Cypress.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title .MULTI-FORMAT TO HDMI/VGA SCALER WITH 3G-SDI LOOP OUTPUT
Notes The CSLUX-300I is an advanced HDMI, PC, SDI, Composite Video, S-Video and Component Video switcher/scaler. This device can scale and switch input sources and display them to its HDMI and VGA/HD outputs simultaneously, with their associated audio signals, at a wide range of output resolutions up to 1080p or WUXGA (RB). It also has the added benefit of an SDI Loop Out for monitoring or extending the SDI input signal. Control is via the IR remote, RS-232, or via front panel buttons and includes an on-screen menu providing settings and system information.Supports HDMI, Composite Video, S-Video, PC (VGA)/HD (Component Video) and SDI inputsSupports HDMI and VGA/Component Video (with adaptor) outputsSupports SDI loop through outputSupports analogue stereo, optical and coaxial digital inputs and optical digital output, analogue stereo output or embedding to HDMI outputSupports conversion of multiple video formats and audio input to HDMI or PC/HD and analogue stereo outputsSupports EDID and HDCPSupports 3D de-interlacing, noise reduction and comb filterSupports frame rate conversionSupports RS-232, remote handset, and front panel controlSupports SDI Standards of SMPTE 259M-C, SMPTE 292M, SMPTE 424M and SMPTE 425M (Level A and Level B)Supports SDI bit rates at 270Mbps, 1.485Gbps, 1.485/1.001Gbps, 2.970Gbps and 2.970/1.001GbpsSupports SDI input distance up to 300m (SD-SDI), 200m (HD-SDI) or 100m (3G-SDI)
DescriptionMulti-format to HDMI/VGA with SDI-loop
Input2x HDMI, 1x SDI, 1x VGA, 1x Component, 1x SV, 1x CV
Output1x HDMI, 1x VGA, 1x SDI(loop)
Upscaled TV Res.480p/576p SMPTE 259M-C
Upscaled PC Res.VGA@60
Downscaled TV Res.1080p@50/60 SMPTE 424M/425M
Downscaled PC Res.WUXGA@60 (RB)
Frame Rate Conversion50/60
ManufacturerCypress
SKU NoWES_CSLUX-300I_1
