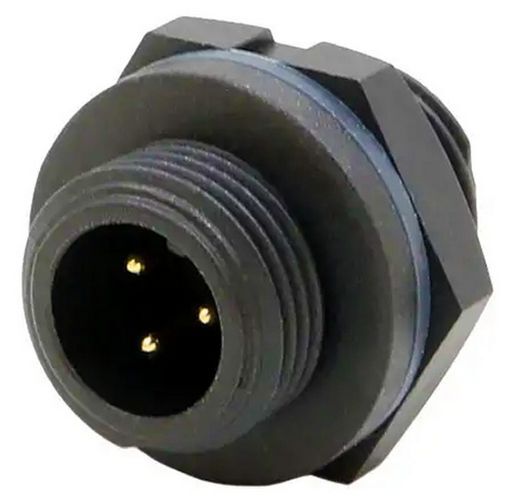

This is a MINI SERIES SOCKET SCREW BACK of brand Chogori.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title MINI SERIES SOCKET SCREW BACK
Notes REAR PANEL MOUNT - MALE PINS Mini series waterproof connector with high quality materials to meet different requirements of various environments. Its plastic material used is high performance PA66. Male pins used is excellent mechanical properties of phosphor bronze assembly with good electrical conductivity brass. Mini series connector has a good performance with waterproof rating of IP68.
DescriptionMini series 3pin rear panel mount with pin(screw type)
Size42x14mmØ
Contact3
Hole11mmØ
Mechanical Life500 mating cycles
Wire Gauge0.519mm²
Panel ThicknessMax. 4.0mm
IPIP67/68
Operating Temperature-45 ~ +105
Voltage Rating110V
Rated Current5A
Chogori Cat Page28
Cable20AWG
ManufacturerChogori
SKU NoWES_21003515-03_1



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN
SKU WES_21003515-03_1
Brand Chogori
