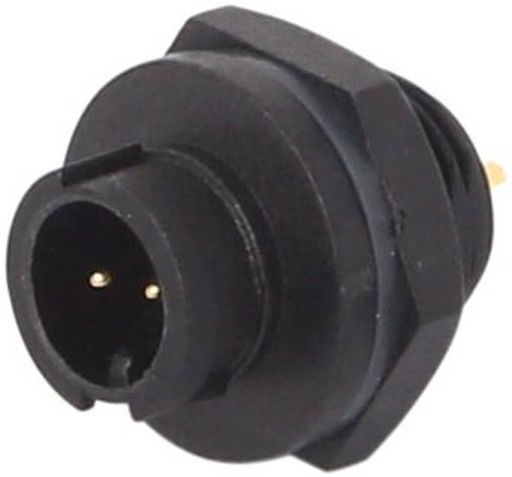

This is a MINI SERIES SOCKET BAYONET of brand Chogori.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title MINI SERIES SOCKET BAYONET
Notes REAR PANEL MOUNT - MALE PINS Mini series waterproof connector with high performance PA66. Male pins use phosphor bronze assembly with high conductivity brass. Mini series connector has a good performance with IP67 waterproof rating, thus it is ideal for indoor and outdoor harsh working environments.
DescriptionMini series 3pin rear panel mount with pin(lock bayonet)
Contact3
Hole10.4mmØ
Mechanical Life500 mating cycles
Wire Gauge0.519mm²
Panel ThicknessMax. 4.0mm
IPIP67
Operating Temperature-45 ~ +105
Voltage Rating110V
Rated Current5A
Chogori Cat Page28
Cable20AWG
ManufacturerChogori
SKU NoWES_21003525-03_1
